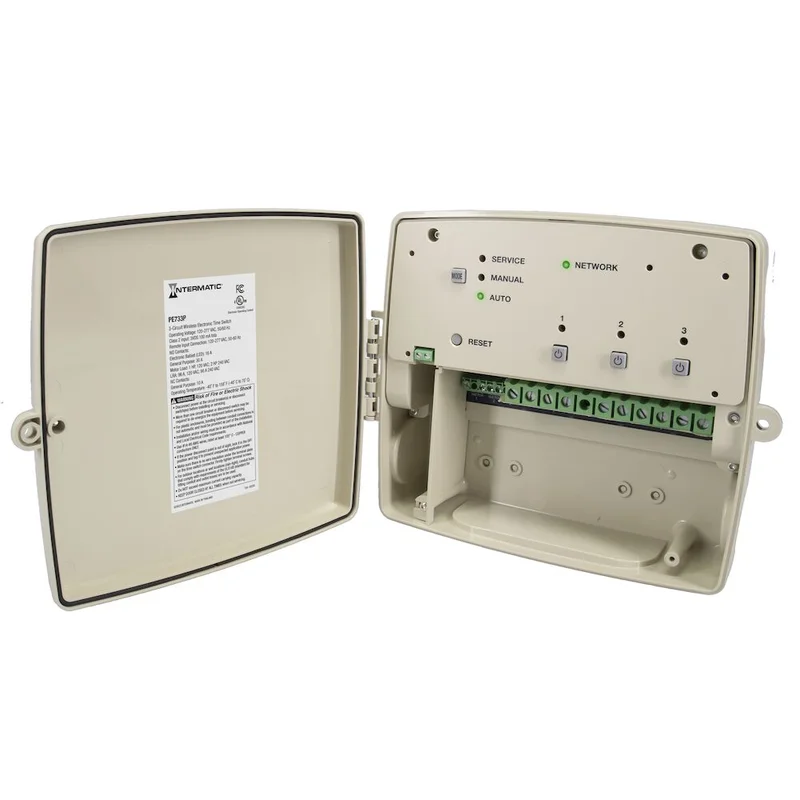

24-Hour 7-Day Electronic Wi-Fi Time Control, 3-Circuit, Type 3R Plastic Enclosure by Intermatic

Description

This general purpose 24-hour, 7-day timer control is capable of automatically switching loads according to a preset daily schedule. Simply wire to various downstream hard-wired pool equipment and turn these loads On and Off via schedule or manually through the Intermatic Connect Mobile App or Voice command.

• Schedule automatic ON/OFF operation of connected pool equipment and make changes anywhere to suit your scheduled needs.
• Controls pool pumps, pool and spa lighting, landscape lighting, pool sanitation, and other auxiliary equipment.
• Up to 96 ON/OFF events per day.
• Simple retrofit – knockout locations and sizes designed equivalently to Intermatic legacy time switch enclosures.
• Auto voltage – automatic input voltage selection from 120 VAC to 277 VAC, 50/60 Hz.
• Configurable relay outputs for multiple switching options (SPDT or DPDT).
• Service mode – with optional timed-stop or timed-run feature. Locks external users out from controlling connected loads remotely.
• LED Status Indicators – provides visual cue to indicate the devices current state and connection status.
• Non-volatile EEPROM memory protects programing indefinitely.
