Description

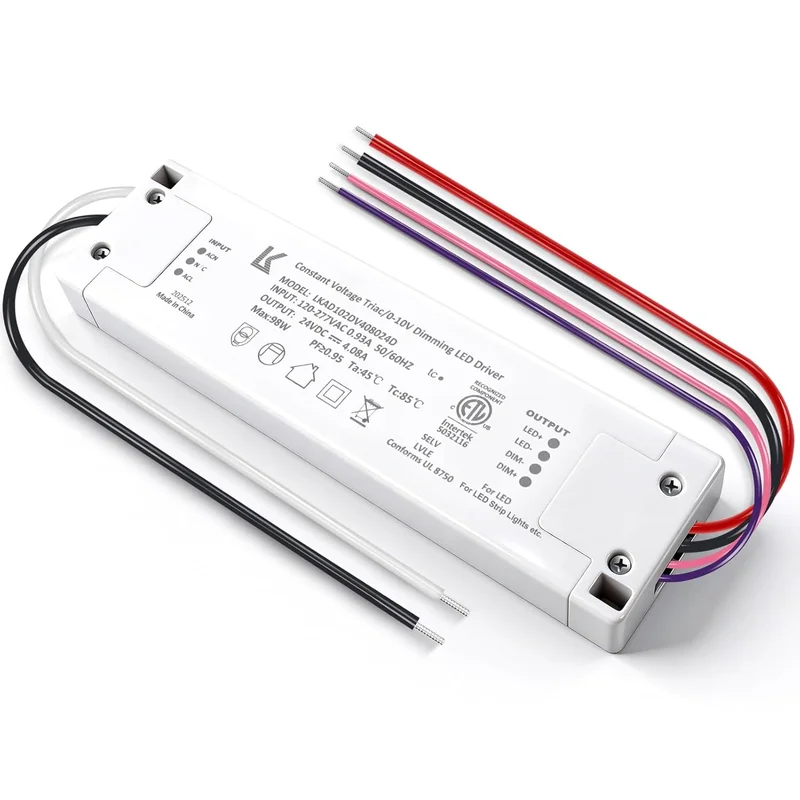

24V DC Plastic Case 5-in-1 Dimmable LED Power Supply, 100W, ETL Listed, AC 120–277V Input, Waterproof Driver for Triac/ELV/0-10V/PWM/Resistive Control
Package Included
| Version | Package Included |
|---|---|
| 100W Driver (1-Pack) | 1 × 100W 24V Dimmable LED Driver, 1 × Mounting Accessory Set |
| 100W Driver (10-Pack) | 10 × 100W 24V Dimmable LED Drivers, 10 × Mounting Accessory Sets |
About this item
- 5-IN-1 Dimmable LED Driver: Supports Triac, ELV, MLV, 0–10V, 1–10V, PWM, and resistive dimming controls. Designed for 24V constant voltage LED lighting systems requiring smooth and reliable brightness adjustment.
- Stable 24V DC Output: Converts AC 120–277V input to stable 24V DC output with a maximum power rating of 100W, ideal for commercial and residential LED applications.
- Wide Dimmer Compatibility: Compatible with most leading-edge and trailing-edge dimmers, as well as 0–10V control systems, providing flicker-free dimming performance from 0–100%.
- ETL Listed & Built for Safety: Designed with built-in short-circuit, overload, over-current, and over-temperature protection to ensure reliable long-term operation.
- Waterproof Plastic Housing: Compact waterproof plastic enclosure suitable for indoor and outdoor low-voltage LED lighting installations where dependable performance is required.
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: AC 120–277V, 50/60Hz
- Output Voltage: 24V DC
- Rated Power: 100W
- Output Current: 4.17A Max
- Dimming Modes: Triac / ELV / MLV / 0–10V / 1–10V / PWM / Resistive
- Certification: ETL Listed
- Housing: Waterproof plastic case
- Protection: Short-circuit, overload, over-current, over-temperature
- Application: 24V constant voltage LED lighting systems
Usage Notes / Installation Tips
- Do not exceed the rated output power of 100W
- Recommended load should not exceed 80% of the maximum output capacity for optimal performance
- Install in a well-ventilated location for efficient heat dissipation
- Disconnect AC power before installation or maintenance
- Use only with compatible 24V DC constant voltage LED fixtures
- Follow the wiring diagram carefully when connecting dimmers and LED loads
Technical Specifications
| Specification | 24V DC 100W |
|---|---|
| Input Voltage | 120–277VAC, 50/60Hz |
| Output Voltage | 24V DC |
| Max Output Current | 4.17A |
| Rated Power | 100W |
| Dimming Type | 5-in-1 (Triac / ELV / MLV / 0–10V / 1–10V / PWM / Resistive) |
| Dimming Range | 0–100% |
| Certification | ETL Listed |
| Housing | Plastic Case |
| Protection | Short-circuit / Overload / Over-current / Over-temperature |
| Application | 24V Constant Voltage LED Lighting Systems |
Applications
- 24V LED strip lights
- Under-cabinet lighting
- Cove lighting
- Architectural accent lighting
- Display and showcase lighting
- Signage and channel letter lighting
- Residential and commercial LED lighting projects
