BLAZE, 100 ft., LED Tape Light, 5000K, 237 Lumens/ft, 24V

Description

BLAZE LED Tape Light — 5000K & High CRI

The BLAZE DI-24V-BLBSC3-50-100 is a high-performance LED tape light offering a crisp 5000K color temperature. This 100 ft. spool is designed for 24V systems and is suitable for indoor damp environments.

Key Features

• Voltage: 24V DC operation for efficient energy use.
• Wattage: 4.5W per foot for balanced power consumption.
• Lumens: 237 lumens per foot for bright illumination.
• LED Density: 36 LEDs per foot for uniform light distribution.
• Max Run: Up to 22 ft. continuous run to minimize voltage drop.
• Cuttable: Field cuttable every 1.96 in. for custom lengths.
• PCB Width: 8mm, compatible with standard channels.
• Beam Angle: 120 degrees for wide light distribution.
• IP Rating: IP20, suitable for indoor damp locations.
• Certifications: UL Listed, RoHS compliant, Title 24.

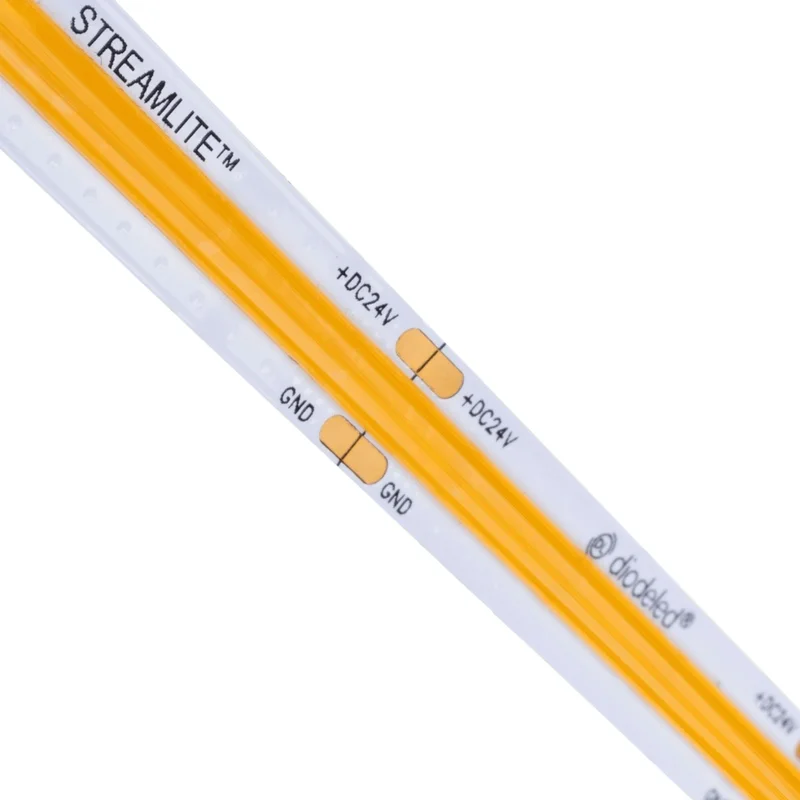

Core Design & Construction

The tape light features an 8mm PCB width, ensuring compatibility with most aluminum channels. It includes a durable 3M adhesive backing for secure installation in various environments.

LED Illumination & Performance

With 237 lumens per foot and a 90+ CRI, this LED tape light delivers high-quality illumination with excellent color rendering, ideal for task and accent lighting.

Power, Wiring & Installation

Requires a 24V DC power supply. The tape is field cuttable every 1.96 in., allowing for precise customization. Supports dimming for adjustable lighting levels.

Where This Tape Works Best

• Under cabinet lighting
• Cove lighting
• Accent lighting
• Display case lighting

What’s Included

• 100 ft. spool of LED tape light
• 36 in. bare lead wire
• 2x White Tape-to-Wire Terminal Blocks
