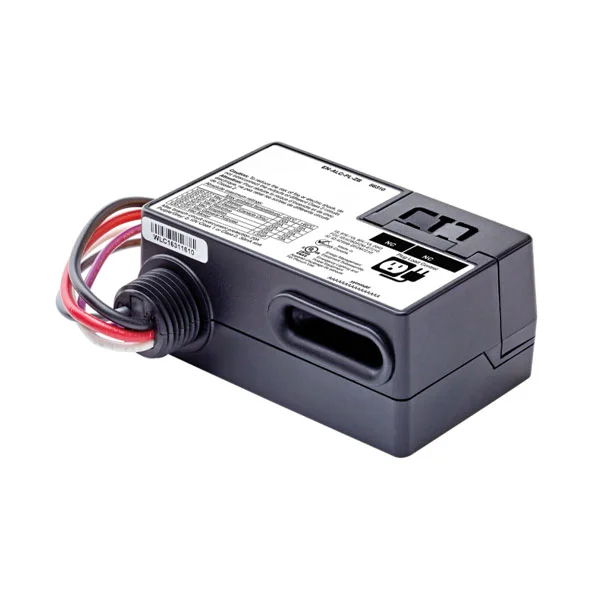

EN-ALC-ZB-BK Wireless Area Lighting Controller, Black Finish by Wattstopper

Description

The Wireless Area Lighting Controller (WALC) is a wireless control device that operates a switched line AC and 0-10V control to luminaires. It communicates to the Wattstopper PLUS Wireless Manager over a wireless mesh network. These individually addressable devices can switch an electrical load up to 20A or a wired zone of multiple luminaires ON or OFF via an integrated high-current relay while setting the zone’s overall light level with a 0-10V dimming output wired to the luminaires’ dimming ballasts or LED drivers. The WALC 0-10V dimming output is fully isolated and suitable for installation as either an NEC Class 2 or Class 1 wiring.

Note: EN-ALC-ZB-BK requires a Greenbus EN-CON-50-GB2 connector (Sold separately).
