Description

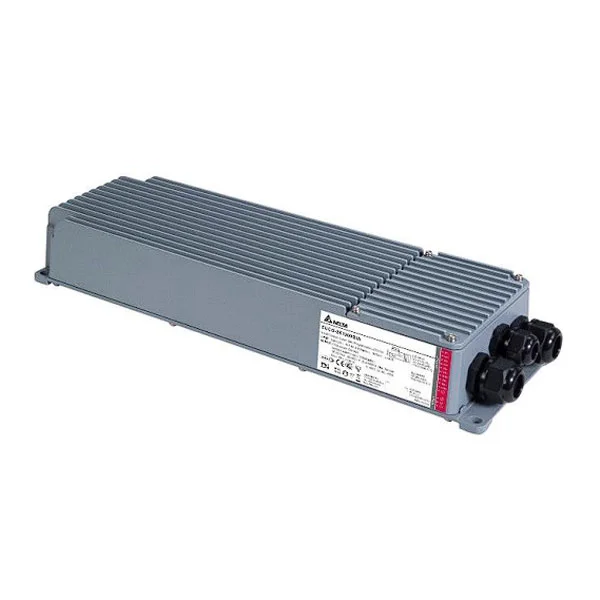

Delta EUCO ARENA SPORT 2K1 series with DALI 2 & D4i or RDM / DMX control functions are constant current non -isolated LED drivers. Compatible with wide input voltage range 220~400Vac from any system manufacturer for indoor and outdoor applications. With IP66 ingress protection and wide ambient operating temperature range from -40°C to +50°C, the driver can fulfill any harsh condition. The extremely low output current ripple makes the driver a typical application for outdoor stadium lighting
- 3 independent output channels: 2100W – max 700W
- per channel
- Nominal input voltage: 220-400VAC
- Ultra high Efficiency (97.8%)
- Control method: DALI2/D4i and DMX-RDM
- Programmable output current range 700-2000 mA
- Output voltage range from 250-550Vdc per channel
- Very low peak-to-peak current ripple (typ.1%) for HDTV broadcasting
- DALI-2 and DMX-RDM configurable single channel or multi-channel (up to 3 x DT6 or 3 x DMX)
- High-accuracy integrated power metering
- Constant Light Output (CLO) function
- Autonomous dimming via Midnight Centric Timer
- Wide dimming range 0.1-100% or 0.4-100%
- Input surge protection: DM 10kV; CM 10kV
- IP66 & IK08 enclosure
- Max remote distance 200 meters
