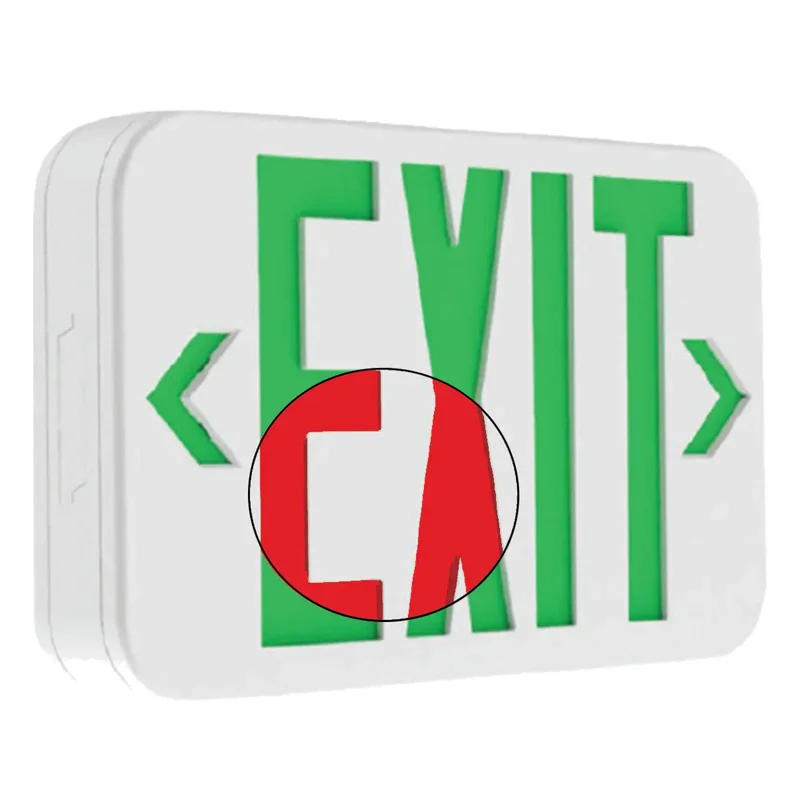

Exitronix QXS Series Exit Sign — Universal Emergency Capability with 120-277V Input
The Exitronix QXS-U-WB-WH is a versatile exit sign featuring universal red/green LED illumination, a 90-minute battery backup, and 120-277V input. Designed for indoor use, it is damp location rated and complies with NFPA 101 and CEC Title 20 standards, ensuring safety and reliability in emergency situations.
Key Features
- Universal LED Design: Field-selectable red and green LEDs with color-matched diffusers for flexible installation.
- Battery Backup: Provides 90 minutes of emergency operation with a 24-hour recharge time.
- Dual-Face Capability: Includes an extra stencil face for single or double-face configuration.
- Construction: Made from high-impact, flame-retardant thermoplastic for durability.
- Mounting Options: Comes with a snap-in canopy for ceiling, end, or wall mounting.
- Test Button: Manual test button for easy verification of the transfer circuit.
- Solid-State Transfer: Ensures reliable switching to emergency mode during power loss.
- Compliance: Meets UL 924, NFPA 101, NEC, and OSHA standards.
Performance & Illumination
The exit sign features fully illuminated 6-inch characters with a 3/4-inch stroke, utilizing high-output, long-lasting LEDs for clear visibility.
Electrical & Battery
Operates on 120/277VAC with a maintenance-free 3.6V NiCad battery, offering a 90-minute backup and 24-hour recharge time.
Physical & Installation Details
Constructed from flame-retardant thermoplastic, the unit includes a universal J-box mounting pattern and snap-together design for easy installation.
Compliance & Safety
UL 924 Listed for Damp Locations, the QXS Series meets NFPA 101, NEC, and OSHA requirements, ensuring reliable performance in various environments.
What’s Included
- Exit Sign Unit
- Snap-in Canopy
- Extra Stencil Face
- Red and Green Diffusers
