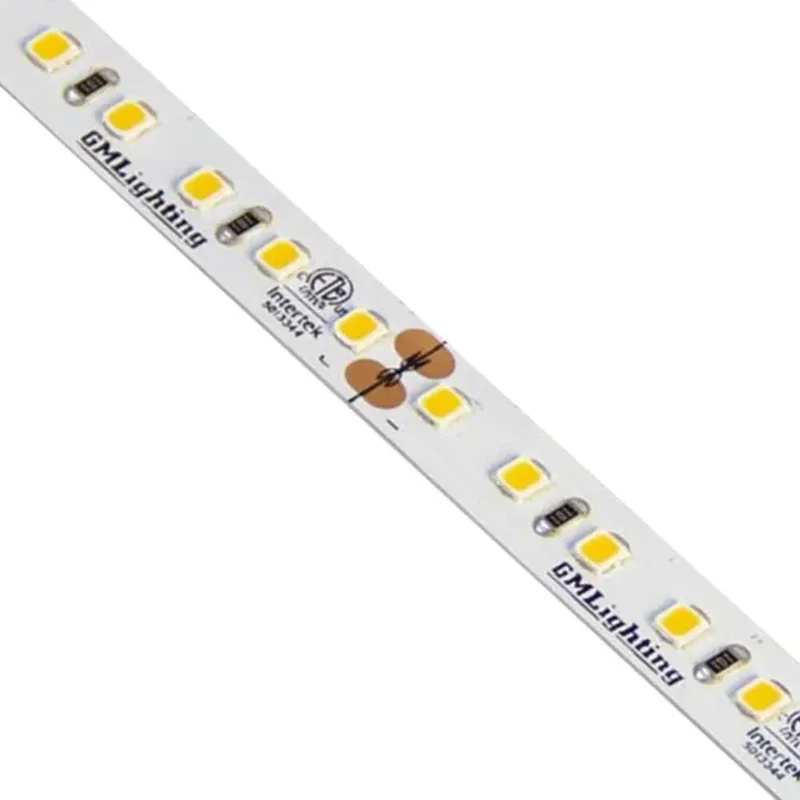

GM Lighting LTR-P Pro Series 4.5W LED Tape – 24V

Description

GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in multiple configurations to meet your specific project needs.

Key Features

• 24VDC operation with 4.5 watts per foot power consumption for high-output performance
• Six color temperature options: 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
• 317-395 lumens per foot output with 90+ CRI for superior color rendering
• 120 LEDs per meter density with 120° viewing angle
• Cuttable every 2″ for precise custom lengths
• Premium diodes with 3M adhesive backing for secure installation
• Remote control compatible with GM’s LUXcontrol® App and controllers
• Includes Sure-Tite connectors for reliable connections
• Dimmable with compatible controls
• Dry location rated for indoor applications

Available Configurations

Voltage: 24VDC only

Reel Sizes: 16′-4″ (5M) or 98′-6″ (30M / 100ft)

Color Temperatures:

• 2400K – Ultra-warm amber (317 lm/ft)
• 2700K – Warm white (337 lm/ft)
• 3000K – Soft white (334 lm/ft)
• 3500K – Neutral white (374 lm/ft)
• 4000K – Cool white (387 lm/ft)
• 5000K – Daylight (395 lm/ft)

What’s Included

• LED tape reel (16′-4″ or 98′-6″)
• (3) ESTW-60 Sure-Tite connectors for 16′-4″ reel
• (10) ESTW-60 Sure-Tite connectors for 100′ reel

Technical Specifications

• Voltage: 24VDC
• Power: 4.5 watts per foot
• Lumens: 317-395 per foot (varies by color temperature)
• CRI: 90+
• LED Density: 120 LEDs per meter
• Viewing Angle: 120°
• Maximum Run: 20′
• Operating Temperature: -4°F to 122°F
• Certifications: ETL listed, Title 24 compliant when used with specific drivers
• Class 2 Closet Rated: Complies with NEC code (NFPA70) 410.16, suitable for installation within clothes closet storage space
• Warranty: 5-year when paired with GM power supply

Applications

Ideal for under-cabinet lighting, cove lighting, display case illumination, architectural accent lighting, hospitality environments, residential installations, and any application requiring premium quality LED tape with exceptional color rendering. The 4.5W series delivers 50% more power than standard 3W tape for enhanced brightness and performance. Choose from six color temperatures to create the perfect ambiance for your space, from ultra-warm amber (2400K) for intimate settings to bright daylight (5000K) for task-oriented applications.

Available Variants

This product is available in 12 configurations combining reel size (16ft/100ft) and color temperature (2400K-5000K). All variants feature 24VDC operation with 4.5 watts per foot power consumption. Please select your specific variant based on your project requirements.
