GM Lighting LTR-S Spec Series Twist Task LED Tape Light – 12V, 2.2W/ft

Description

GM Lighting’s Specification Series Flexible Twist-Task LED tape features segmented construction that enables the tape itself to conform to curves, sharp angles and irregular shapes that challenge typical linear tape. Available in four color temperatures to suit any application. 16′-4″ (5M) reels.

Key Features

• 12VDC low-voltage operation

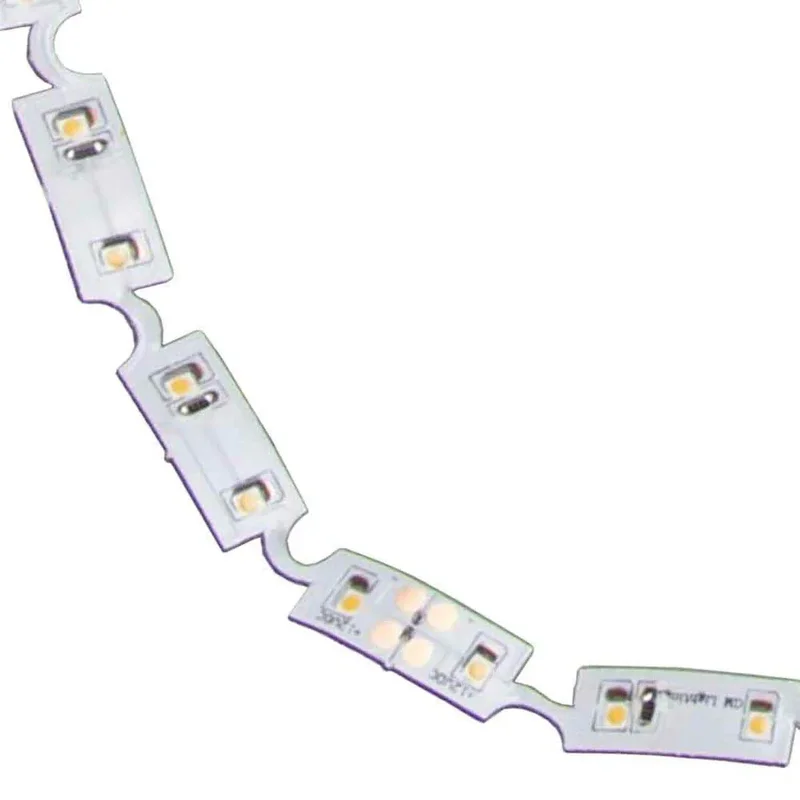

• Segmented construction allows twist back to conform to curves and angles
• Cuttable every 4″
• Premium 2835 diodes with 90+ CRI
• Dimmable with compatible controllers
• 120° viewing angle for uniform light distribution
• 3M adhesive back for easy installation
• Maximum run on a given lead is 16′-4″
• Includes Sure-Tite connectors
• Remote control compatible with GM’s LUXcontrol™ App and controllers (LM80/IP20)

Available Color Temperatures

• 2700K (Warm White): 183 lm/ft – Cozy, intimate lighting for residential and hospitality environments
• 3000K (Soft White): 192 lm/ft – Warm, inviting ambiance for residential and hospitality spaces
• 3500K (Neutral White): 199 lm/ft – Balanced illumination for retail and commercial applications
• 4000K (Cool White): 201 lm/ft – Task lighting and modern commercial spaces

Technical Specifications

• Voltage: 12V
• Wattage: 2.2 watts per foot
• Lumens: 183-201 lumens per foot (varies by color temperature)
• CRI: 90+
• Reel Length: 16′-4″ / 5M
• Maximum Run: 16′-4″
• Operating Temperature: -4°F to 122°F
• Dry location

Certification & Warranty

• UL Listed
• Title 24 compliant when used with specific drivers (consult factory)
• Class 2
• Closet Rated – Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
• 5-year warranty when paired with GM power supply

Applications

• Under cabinet and cove lighting
• Architectural accent lighting
• Curved surfaces and irregular shapes
• Residential, hospitality, retail, and commercial installations
• Closet and wardrobe lighting
• Display and showcase illumination

Note: Includes 48″ lead affixed to tape and (3) ESTW-60 Sure-Tite connectors. Kelvin temperature (color) ±100K. Select your preferred color temperature from the available options.
