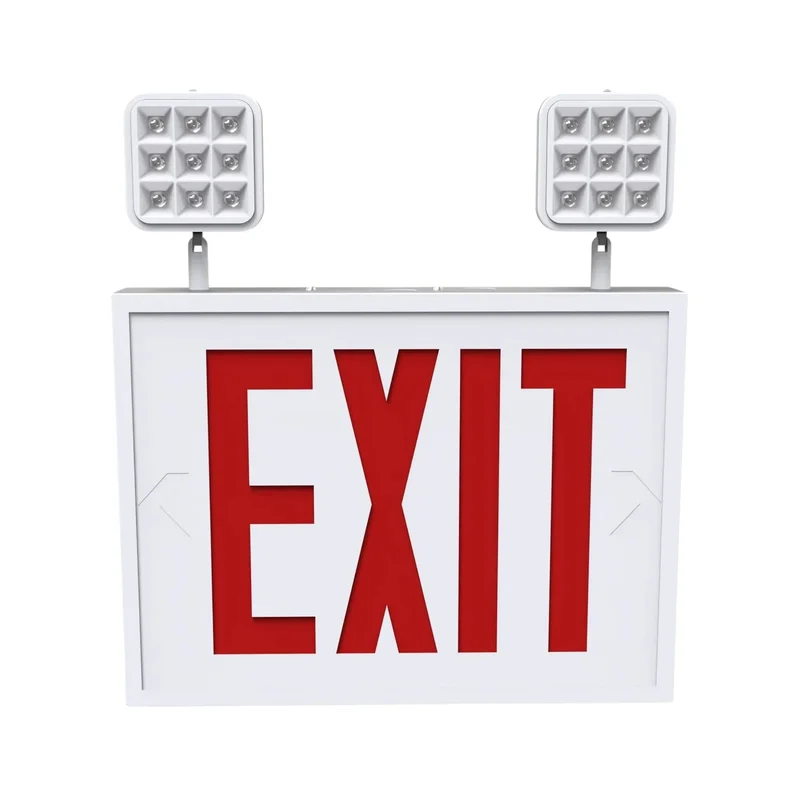

Keystone KT-EC-STNY1 Exit/Emergency Combo Red Letters 90-Min Backup 120-277V Surface Mount White

Description

Keystone KT-EC-STNY1 Exit/Emergency Combo — 90-Minute Backup and 120-277V Input

The Keystone KT-EC-STNY1-WH3RW-SU-HO is a robust exit and emergency lighting solution featuring red LED lettering and a 90-minute battery backup. Designed for compliance with New York City Code, this unit ensures safety and reliability in emergency situations. With a 120-277V input, it is suitable for a wide range of applications.

Key Features

• Red LED Lettering: Provides clear and visible exit indication with high contrast.
• Battery Backup: Integrated NiMH battery offers 90 minutes of emergency operation.
• High Lumen Output: Delivers 800 lumens for enhanced visibility.
• Surface Mounting: Versatile mounting options include top, side, and back.
• Steel Housing: Durable 20-gauge steel construction for long-lasting performance.
• Test Switch: Built-in test switch and charge indicator for easy maintenance.
• Temperature Range: Operates in ambient temperatures from 0°C/32°F to 40°C/104°F.
• Recharge Time: Fully recharges in 24 hours for readiness.
• NYC Compliant: Meets stringent New York City safety standards.
• UL Certified: Approved for damp locations, ensuring reliable performance.

Performance & Illumination

This unit features red LED lettering with a high lumen output of 800 lumens, ensuring visibility in emergency situations. The adjustable dual heads provide optimal illumination coverage.

Electrical & Battery

Operating on 120-277V, the unit includes a NiMH battery with a 1200mAh capacity, providing 90 minutes of backup power. It features a built-in test switch and charge indicator for easy maintenance.

Physical & Installation Details

Constructed from durable 20-gauge steel, the unit is designed for surface mounting with options for top, side, and back installations. It includes all necessary hardware for installation.

Compliance & Safety

Compliant with New York City Code and UL 924 standards, this unit is rated for damp locations and operates within a temperature range of 0°C/32°F to 40°C/104°F.

What’s Included

• Exit/Emergency Combo Unit
• Single and Double Faceplates
• Mounting Hardware
