Keystone Mistik Architectural LED Wall Washer — 24W, 1110 Lumens, RGBW Color

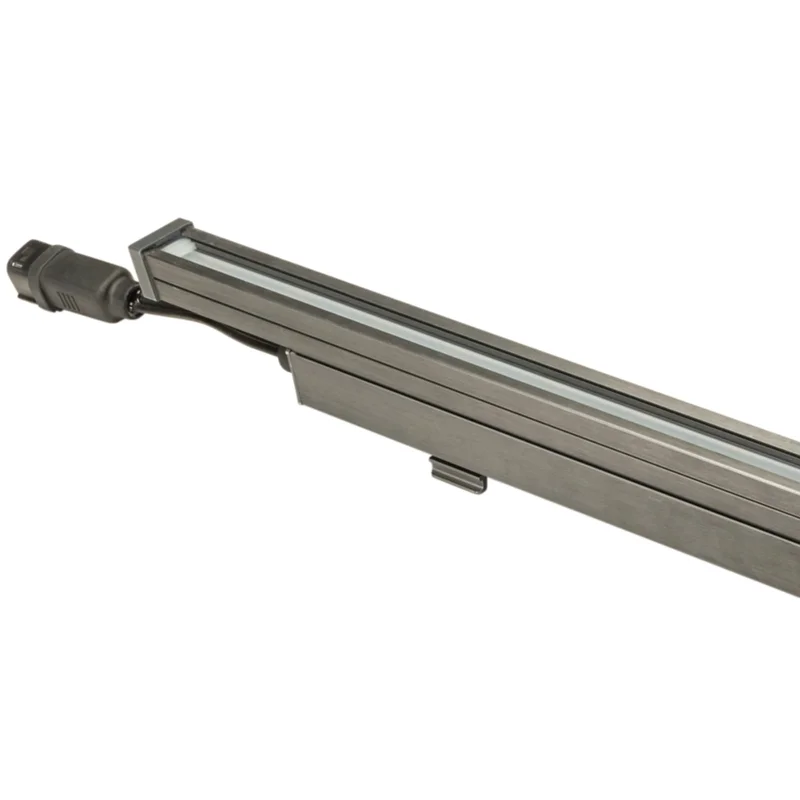

The Keystone KT-WWLED24 is a professional-grade 48-inch LED wall washer engineered for dynamic exterior lighting. Operating at 24W and delivering 1110 lumens across a universal 120-277V input, this fixture provides full RGBW color control without requiring an external low-voltage power supply. Designed for commercial architectural and landscape applications, it seamlessly integrates with standard DMX systems to execute complex color sequencing and continuous facade grazing routines.
Key Features
- Power Consumption: 24W
- Lumen Output: 1110 lumens
- Input Voltage: 120-277V
- Color Output: RGBW
- Light Distribution: Medium beam angle
- Control Compatibility: DMX 512 and RDM compliant
- Control Channels: 4 DMX channels
- Linkability: Daisy chain up to 40 fixtures
- Signal Termination: Built-in DMX512 termination cap
- Environmental Rating: IP66 wet location
- Lifespan: 50,000 hours
Typical Applications
- Commercial building facades
- Continuous architectural grazing
- Large billboard and sign lighting
- Outdoor landscape accents
- Single and two-story exterior walls
Performance & Light Output
This 48-inch linear fixture outputs a maximum of 1110 lumens with an efficacy of 45 lumens per watt. It utilizes advanced Osram LEDs to produce a full RGBW color spectrum, featuring an 80 CRI rating for the white light channel. The medium beam optical distribution is optimized by an impact-resistant tempered glass lens, ensuring precise light projection for uniform grazing across wide architectural surfaces over a 50,000-hour rated lifespan.
Electrical & Controls
Operating on a universal 120-277V input, this wall washer features an internal driver that eliminates the need for separate exterior power supplies. It is fully DMX 512 and RDM compliant, utilizing four DMX channels for precise color sequencing and scene control. For advanced wireless integration, this fixture is compatible with optional Keystone SmartLoop Wireless DMX Controllers (sold separately), which enable effortless commissioning, precise color tuning, and automated scheduling via mobile applications.
Construction & Durability
Built for demanding outdoor environments, the fixture features a rugged extruded aluminum linear housing equipped with an impact and heat-resistant tempered glass lens. The enclosure carries a strict IP66 wet location rating, fully sealing the internal electrical components against heavy dust ingress and powerful water jets. Engineered for extreme climates, it maintains stable operation within a wide ambient temperature range of -40°F to 122°F (-40°C to 50°C).
Installation & Mounting
The unit is designed for rapid deployment in landscape and architectural settings, utilizing an included hinged mounting bracket for precise aiming and tilt adjustment. Electrical connections support efficient end-to-end daisy chaining for up to 40 units, depending on circuit load constraints. Installers can streamline complex continuous runs using optional waterproof linking cord sets and Wall Mount Bracket Kits (sold separately) to bridge gaps between fixtures and third-party control hubs.
What’s Included
- (1) 48-Inch LED Wall Washer Fixture
- (1) Hinged Mounting Bracket
- (1) DMX512 Signal Termination Cap
