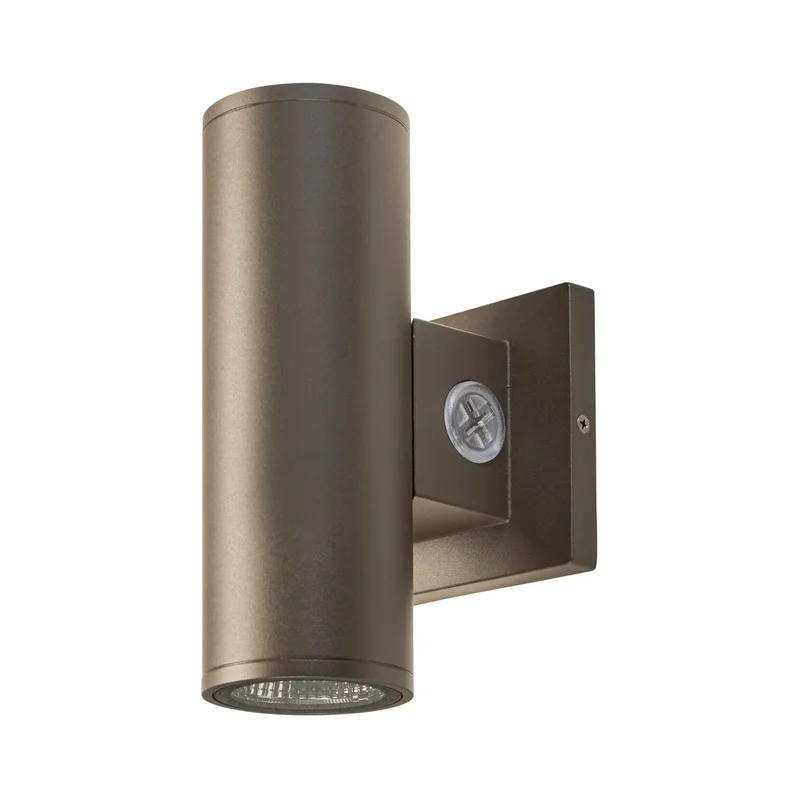

Keystone Sentinel Cylinder Wall Mount Fixture

Description

Keystone Technologies presents the Sentinel Cylinder Wall Mount collection, a versatile family of LED outdoor lighting fixtures designed for architectural excellence. These modern cylinder wall sconces combine Power Select technology with selectable color temperatures, delivering professional-grade illumination for commercial facades, residential entryways, and decorative outdoor applications.

Power Select Technology

Each fixture in the Sentinel collection features innovative Power Select capability, allowing you to switch between direct downlight, indirect uplight, or full bidirectional illumination on-site. This flexibility eliminates the need for multiple fixture types and simplifies installation across diverse architectural projects.

Collection Features

• Available in three sizes: 3-inch, 4-inch, and 6-inch cylinders for scalable design solutions
• Tri-CCT selectable: Choose 3000K warm white, 4000K neutral, or 5000K daylight at installation
• Three finish options: Black, White, and Bronze to complement any architectural style
• Universal 120-277V input voltage for commercial and residential compatibility
• 0-10V dimmable for seamless integration with lighting control systems
• Interchangeable optics: 40° lens installed with 25° and 60° reflectors included
• Built-in dusk-to-dawn photocell for automated operation
• Die-cast aluminum construction for superior durability and heat dissipation
• UL Listed, IP65 rated for reliable wet location performance
• L70 rated for 50,000+ hours of maintenance-free operation

Performance Range

The Sentinel collection offers flexible lumen outputs to match your project requirements. Compact 3-inch models deliver up to 1050 lumens from 10W, mid-sized 4-inch fixtures provide up to 2050 lumens from 20W, and large 6-inch cylinders produce up to 3200 lumens from 36W. All models achieve high efficacy ratings and maintain CRI >80 for accurate color rendering.

Versatile Applications

Ideal for building facades, entryway lighting, outdoor corridors, wall washing, awning illumination, architectural accents, hospitality venues, retail storefronts, residential exteriors, and commercial properties. The Sentinel collection’s modular approach allows designers to create cohesive lighting schemes across projects of any scale.

Technical Compliance

All Sentinel fixtures meet FCC Part 15, Part B, and Class A standards for electromagnetic compatibility. Operating temperature range from -40°C to 45°C ensures reliable performance in extreme climates. RoHS compliant with 10-year limited warranty coverage.

Design Flexibility

Mix and match sizes and finishes to create custom lighting layouts. The consistent design language across the collection enables seamless integration whether you’re illuminating a single entryway or an entire building facade. Power Select technology means every fixture can adapt to changing design requirements without replacement.
