Description

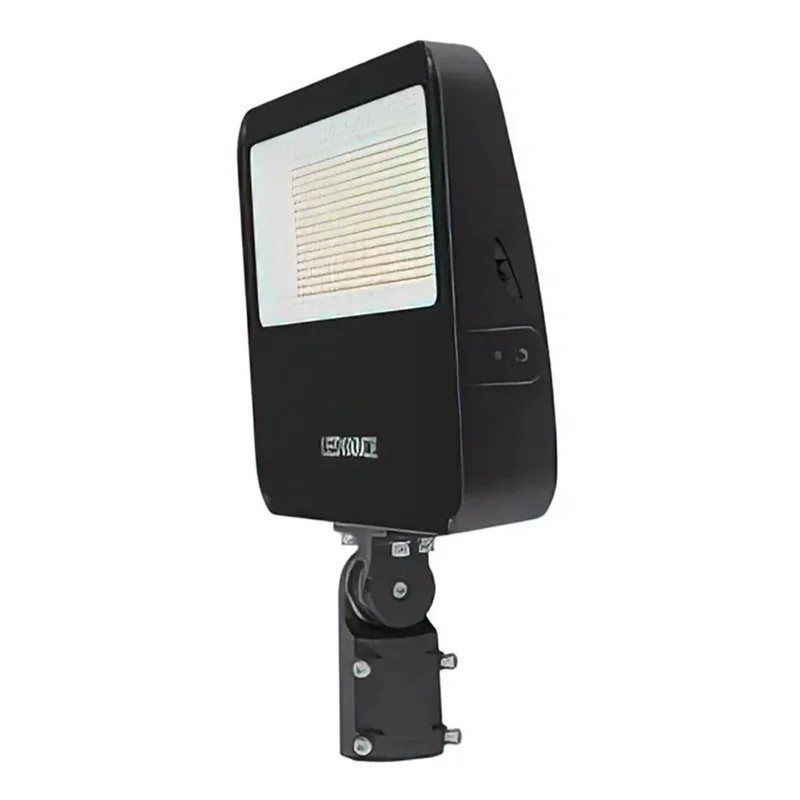

LEDVANCE Sylvania 63863 Dual Selectable Floodlight — 300W, Selectable CCT & Power, Slipfitter & Trunnion, 120-347V, Bronze
The LEDVANCE Sylvania 63863 (FLOODLT2AS300UNHD8SC2BZP) is an industrial-grade, dual-selectable LED flood light designed to deliver extreme illumination with incredible on-site versatility. This powerful luminaire produces up to 45,000 lumens and allows installers to easily toggle between three high-output wattage levels (300W, 250W, 200W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for large building perimeters, vast parking areas, and architectural accents. Operating on a versatile 120-347V driver, this model comes equipped with a 3-Pin Receptacle and shorting cap, allowing you to easily add a photocell for automated dusk-to-dawn energy savings. Built for longevity, the 63863 is housed in a robust LEDVANCE design and earns an IP65 rating for durability against the elements. With a 5-year warranty, DLC 5.1 Premium listing, and standard 0-10V dimming, it is a perfect solution for heavy-duty commercial exterior lighting.
Key Features
- Wattage: Field adjustable to 300W, 250W, or 200W.
- Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities.
- Controls Ready: Includes a NEMA 3-pin receptacle and shorting cap (photocell sold separately).
- NEMA Type: Wide NEMA 7H x 7V beam spread.
- Mounting Type: Includes both a slipfitter mount and a trunnion mount in the box.
- Delivered Lumens: Up to 45,000 lumens at the highest 300W setting (150 LPW).
- Environmental Ratings: IP65 rated for dust and water; cULus Listed for wet locations.
- Warranty: 5-Year Manufacturer Warranty.
Typical Applications
- Large building perimeters and expansive facade illumination
- Commercial parking lots, lots, and wide area lighting
- Sports courts and large architectural accents
- General exterior area and security lighting
Performance & Light Output
The LEDVANCE Sylvania 63863 provides high-intensity, uniform light with a maximum output of 45,000 lumens and an excellent efficacy of up to 150 lm/W. Its advanced optical design ensures excellent color consistency (80+ CRI). With long-life LEDs rated for 100,000 hours (L70 at 25°C), this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a highly flexible driver, the 63863 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated 3-pin receptacle to easily add dusk-to-dawn controls.
Construction & Durability
The fixture features a rugged aluminum housing finished in bronze. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -40°F (-40°C) up to 122°F (50°C).
Installation & Mounting
This model provides maximum installation flexibility for high-lumen fixtures. The box includes both a standard slipfitter mount (ideal for 2 3/8″ tenons and poles) and a trunnion mount (for flat surface installations), giving installers exactly what they need right out of the package.
What’s Included
- LEDVANCE Sylvania 63863 LED Dual Selectable Floodlight (Bronze)
- Slipfitter Mount
- Trunnion Mount
- 3-Pin Receptacle & Shorting Cap
- 5-Year Manufacturer Warranty
