Legrand ARUSB30PDM4 Adorne 30W Dual USB Type C Outlet Module, Magnesium

Description

Legrand Adorne USB Type C Outlet Module — Magnesium & Power Delivery

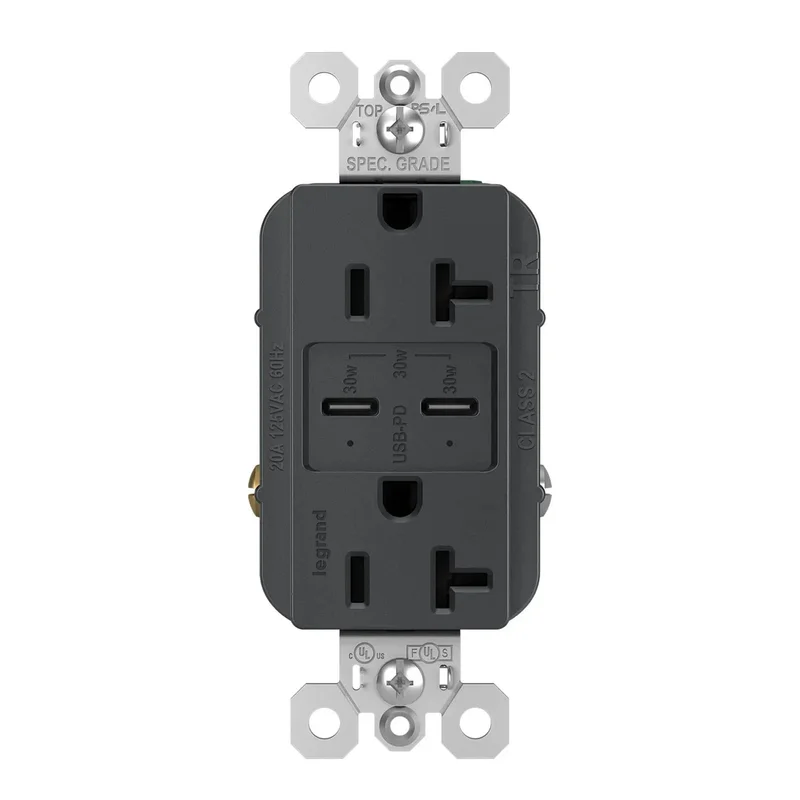

The Legrand ARUSB30PDM4 in Magnesium is a USB Type C Outlet Module from the Adorne Collection. It features a 20A capacity and is Tamper-Resistant, ensuring safety with built-in shutters. This module supports NEMA 5-15R configuration and offers advanced Power Delivery for fast charging.

Key Features

• Voltage: Operates at standard input voltage for residential and commercial use.
• Amperage: Rated at 20A for high-demand applications.
• NEMA Configuration: NEMA 5-15R compatible for widespread compatibility.
• Tamper-Resistant: Yes, includes safety shutters to prevent accidental contact.
• USB Type C Ports: Two ports with 30W Power Delivery for efficient charging.
• Charging Indicator: LED light indicates charging status with yellow and green signals.
• Installation: Back wire connection with internal pressure plates for secure setup.
• Dimensions: Measures 1.77 in. width, 2.65 in. height, and 1.7 in. depth.
• Warranty: Backed by a Limited Lifetime Warranty for peace of mind.
• Compliance: RoHS compliant for environmental safety.

Construction & Interface

This outlet module features a sleek magnesium finish and is designed for use with Adorne’s screwless wall plates, which are sold separately. The module’s compact design and scalloped cover facilitate quick installation.

Power & USB Charging

Equipped with dual USB Type C ports, this outlet provides 30W of Power Delivery, enabling fast charging for modern devices. The intelligent charging system adjusts power output for optimal charging efficiency.

Wiring & Installation

Installation is straightforward with back wire connections and internal pressure plates. It supports wire sizes from #14 to #12 AWG and is designed for box mounting, making it suitable for various applications.
