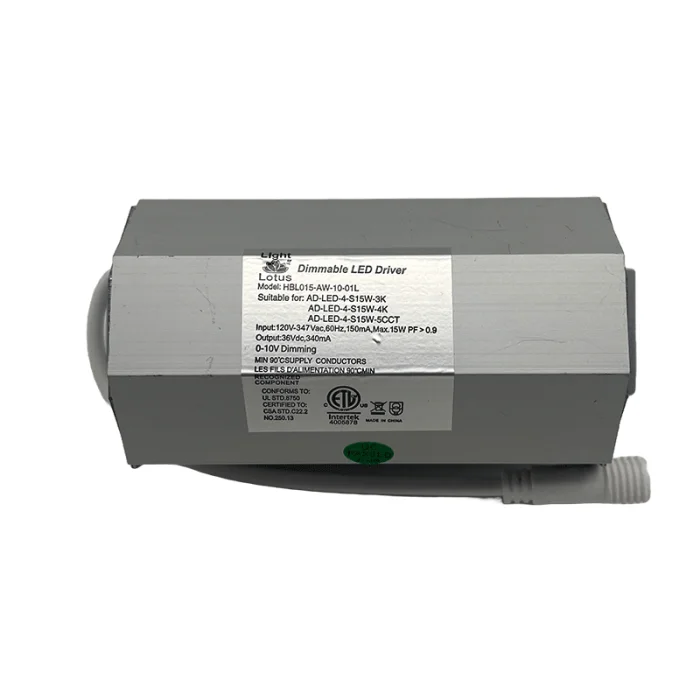

Lotus 0-10V Dimming Driver for 15W LBL 2 Prong Fixtures – 120-347V

Description

120-347V Input Driver in Connection Box 0-10V Dimmmable for Light By Lotus 15W Models 2 Prong. Connection box wire capacity: Maximum of 4 No 12 AWG or 5 No 14 AWG.

Input: White (Neutral) & Black (Hot) wires with quick connectors. Connect to 120V – 347V AC according to the Dimmer Manufacturer’s Instructions.

Output: White cable with 2 prong screw-in connector. Connect to compatible Light By Lotus fixtures from the list below.

0-10V contol wires: Grey (-) and Purple (+). Connect to dimming or control system 0-10V only. DO NOT CONNECT TO LINE VOLTAGE. If you short the Grey and Purple wires the fixture would be turned off.

Compatible fixtures:

• LED-2-S15W fixtures (single CCT and DTW)
• AD-LED-4-S15W (All CCT’s – single and selectable)
• LED-6-S15W-3K-FG-WH – (3000K single CCT only)
• AD-3-S15W-FC-3018K (DTW only)
