Lutron MACL-L3S25-LA Maestro LED+ Dual Dimmer and Switch, 75W LED/2.5A Fan, Single Pole, Light Almond

Description

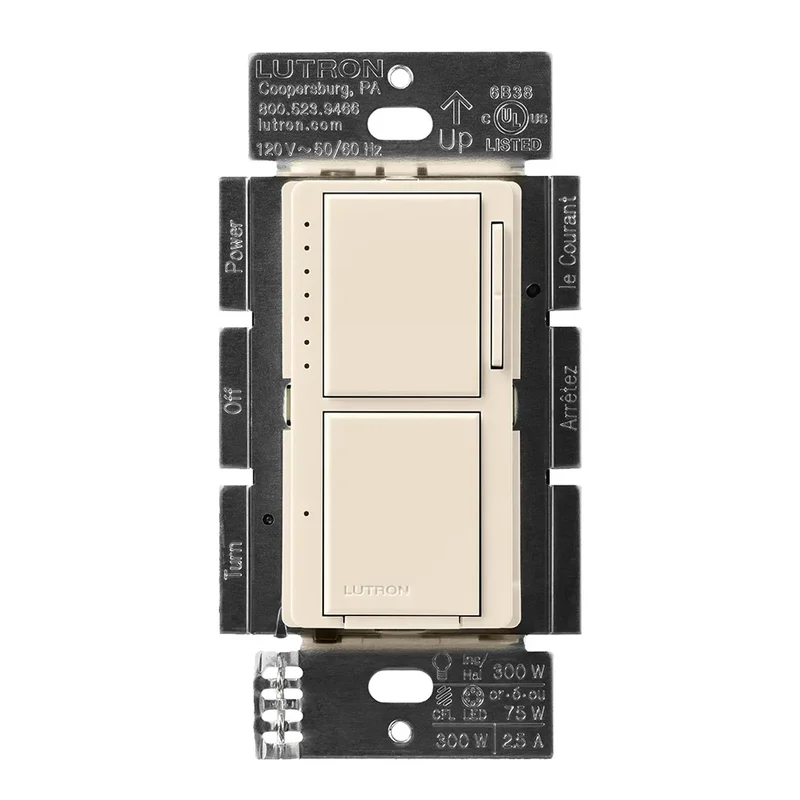

Lutron MACL-L3S25-LA Maestro LED+ Dual Dimmer and Switch

The MACL-L3S25-LA is a Lutron Maestro LED+ dual dimmer and switch in light almond designed for controlling one dimmable light and one switched light or fan. This space-saving stacked design replaces two switches in a single gang box for cleaner appearance. The dimmer circuit controls up to 75W LED or 300W incandescent/halogen with smooth performance while the switch circuit handles all lighting types or exhaust fans up to 2.5A including DC models. Ideal for residential and light commercial applications requiring dual control in limited space.

Lutron MACL-L3S25-LA Features

• Space-Saving Design: Replaces two switches in a single gang box for cleaner appearance
• Advanced LED Dimming: Optimized for smooth, flicker-free dimming of up to 75W LED or 300W incandescent/halogen
• Dual Circuit Control: Dimmer for one light, switch for second light or fan up to 2.5A
• Tap Switch with Rocker: Tap for on/off with preset lighting, rocker for brightness adjustment
• Green LED Indicators: Display dimming level and switch status for clear visual feedback
• Advanced Programming: Enables low-end trim adjustment and customizable fade rates
• Fan Compatible Switch: Handles exhaust fans up to 2.5A including DC models
• No Neutral Required: Installs in as little as 15 minutes using existing wiring
• Single Pole Only: Designed for single location control
• Light Almond Gloss Finish: Warm, classic appearance for traditional décor
• UL Listed: Certified for safety and quality

Specifications

• Model: MACL-L3S25-LA | UPC: 784276310857
• Color/Finish: Light Almond (Gloss)
• Dimmer Capacity: 75W LED, 300W incandescent/halogen
• Switch Capacity: 2.5A fan and/or lighting loads including DC models
• Voltage: 120V~ 50/60 Hz
• Wiring: Single pole only
• Neutral Wire: No neutral wire required
• Mounting: In-wall
• Dimensions: 4.5″ x 2.3″ x 2.3″ (h x w x d)
• Certifications: UL Listed, 100% factory tested
• Warranty: 10 Years with product registration

Applications

• Residential bathrooms with vanity lighting and exhaust fan
• Bedrooms, living rooms, dining rooms
• Kitchens with task lighting and ventilation
• Any space requiring dual control in a single gang box

Installation & Operation

The Lutron MACL-L3S25-LA installs in a standard single-gang wallbox without neutral wire. Requires single line (hot) wire and two separate load wires. Single pole only. Tap the dimmer switch to turn lights on to preset levels or twice for full brightness, use the rocker for precise control. Tap the switch button to control the second light or fan. Green LED indicators display dimming level and switch status.

Compatible Loads

• Dimmer Circuit: Up to 75W dimmable LED/CFL or 300W incandescent/halogen
• Switch Circuit: All lighting types or exhaust fans up to 2.5A including DC models

Why Choose Lutron Maestro LED+ Dual Controls

Lutron is the world leader in lighting control with over 60 years of innovation. The Maestro LED+ dual dimmer and switch combines two controls in one device through space-saving stacked design. Advanced circuitry tested across thousands of bulbs ensures flicker-free performance. With UL listing, 10-year warranty (with registration), and Lutron’s quality reputation, the MACL-L3S25-LA delivers professional-grade dual control.
