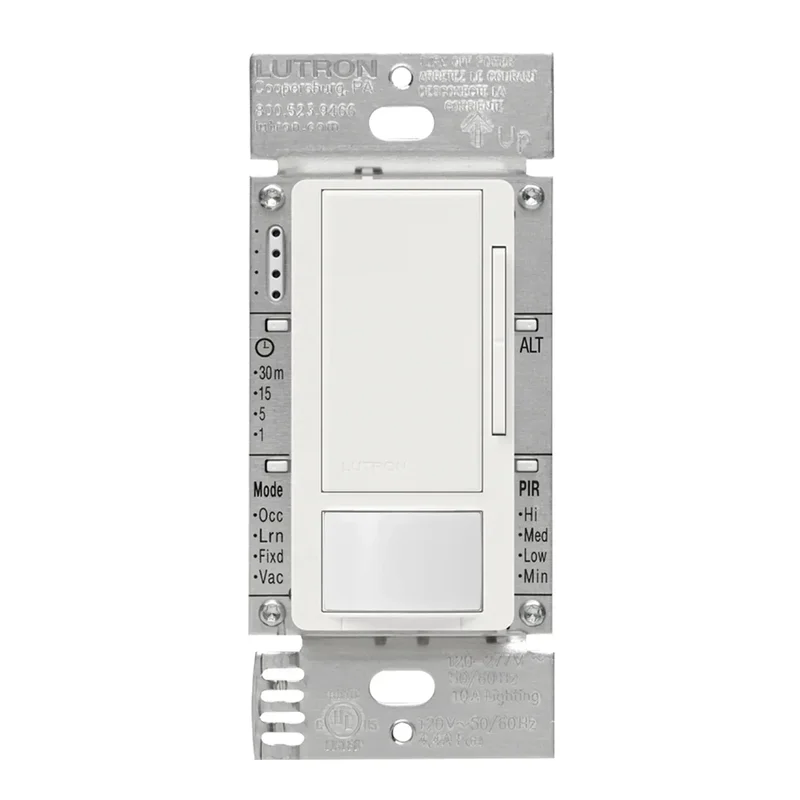

Lutron Maestro 0-10V Vacancy Dimmer Sensor | 3-Way/Multi-Location | 8A 120-277V

Description

The Lutron Maestro MS-Z101-V series combines a 0-10V dimmer with a passive infrared (PIR) vacancy sensor to deliver intelligent lighting control for commercial and residential applications. This single-pole/multi-location sensor automatically controls electronic fluorescent ballasts or LED drivers, detecting heat from occupants to determine when a space is occupied. The vacancy mode requires manual-on activation, ensuring lights only turn on when needed, then automatically turn off when the space is vacant—ideal for California Title 24 compliance.

Key Features

• Compatible with electronic fluorescent ballasts and LED drivers up to 8A with 0-10V dimming control
• Exclusive Lutron XCT Technology provides fine motion detection with 180° field-of-view
• Major motion coverage up to 30 ft × 30 ft (9 m × 9 m) [900 ft² (81 m²)]; minor motion coverage 20 ft × 20 ft (6 m × 6 m) [400 ft² (36 m²)]
• Smart ambient light detection prevents lights from turning on when sufficient natural light is available
• Single-pole and 3-way capability; works with standard mechanical 3-way switches or up to 9 companion switches (MA-AS3 or MSC-AS)
• Adjustable timeout options (1, 5, 15, or 30 minutes) and sensitivity levels (High, Med, Low, Min)
• Selectable dimming curve with linear or square law response for optimized performance
• Fade-to-On and Fade-to-Off with adaptive switching algorithm for extended relay life
• High-end and low-end trim adjustments for maximum energy savings and flicker prevention
• Miswire and incompatible load alerts for safe installation

Technical Specifications

• Model Series: MS-Z101-V (Vacancy, single-pole/multi-location)
• Operating Voltage: 120-277V~ 50/60 Hz
• Load Capacity: 8A for 0-10V electronic fluorescent ballasts or LED drivers
• Sensor Type: Passive infrared (PIR) with XCT Technology
• Sensor Operation: Manual-on/auto-off ONLY (vacancy mode)
• Field of View: 180°
• Coverage Area: Up to 900 ft² (81 m²) major motion; 400 ft² (36 m²) minor motion
• Timeout Options: 1, 5, 15, or 30 minutes
• Ambient Temperature: 32°F to 104°F (0°C to 40°C), 0%-90% humidity, non-condensing; indoor use only
• Certifications: UL Listed, Title 20 and Title 24 certified lighting device, complies with Title 24 Section 110.9
• Warranty: 5 Year Limited Warranty
• Available Finishes: White (MS-Z101-V-WH), Black (MS-Z101-V-BL), Light Almond (MS-Z101-V-LA)
• Neutral Wire: Optional

Applications

Perfect for commercial offices, conference rooms, restrooms, storage areas, classrooms, hospitality spaces, and residential applications where energy efficiency and Title 24 compliance are required. The vacancy sensor mode ensures lights are only activated manually, preventing false-on events while still providing automatic shut-off when spaces are unoccupied. Ideal for retrofits and new construction projects requiring 0-10V dimming control with occupancy sensing.
