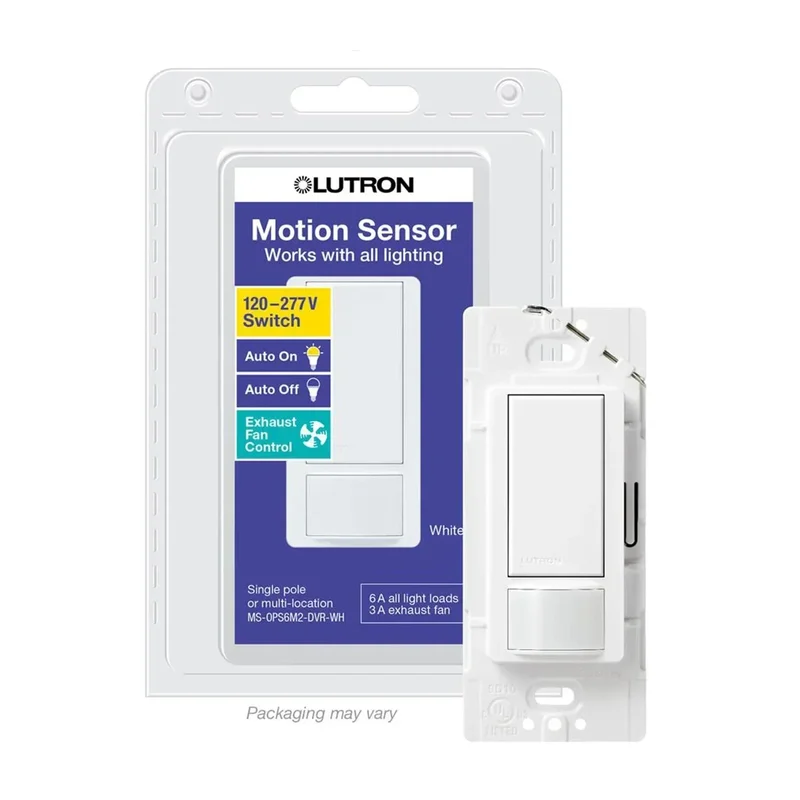

Lutron Maestro Sensor Switch — White & Occupancy/Vacancy Modes
The Lutron MS-OPS6M2-DV-WH is a Maestro sensor switch in a white finish, designed for occupancy and vacancy detection. This sensor switch operates at 120-277V and supports a load rating of 6A, making it suitable for various lighting loads including incandescent, halogen, ELV, MLV, CFL, LED, and fan loads. It features single-pole/3-way capability.
Key Features
- Voltage: Operates at 120-277V, 50/60 Hz.
- Load Rating: Supports up to 6A for various lighting loads.
- Pole Configuration: Compatible with single-pole and 3-way installations.
- Sensor Technology: Features passive infrared sensors with XCT Technology for precise motion detection.
- Timeout Options: Adjustable timeout settings of 1, 5, 15, or 30 minutes.
- Neutral Wire: Not required, simplifying installation in retrofit applications.
- Dimensions: Measures 2.94 in. width x 4.69 in. height x 1.50 in. length.
- Certifications: UL Listed and NOM Certified.
- Ambient Light Detection: Smart ambient light detection adjusts to user preferences.
- Environment: Indoor use only, with an operating temperature range of 32°F to 104°F.
- Warranty: Comes with a 5-year limited warranty.
Construction & Interface
The sensor switch features a crush/tamper-resistant lens and a sleek white finish. It includes a tapswitch for manual on/off control and a sensor LED for configuration feedback. The wallplate is sold separately.
Sensor, Smart & Timer Capabilities
This sensor switch offers occupancy and vacancy modes with auto-on/auto-off or manual-on/auto-off settings. It includes smart ambient light detection and adjustable sensitivity for optimal performance.
Wiring & Installation
The MS-OPS6M2-DV-WH does not require a neutral wire, making it ideal for retrofit applications. It supports single-pole and 3-way installations using standard mechanical switches or companion switches. Ensure proper grounding for optimal operation.
