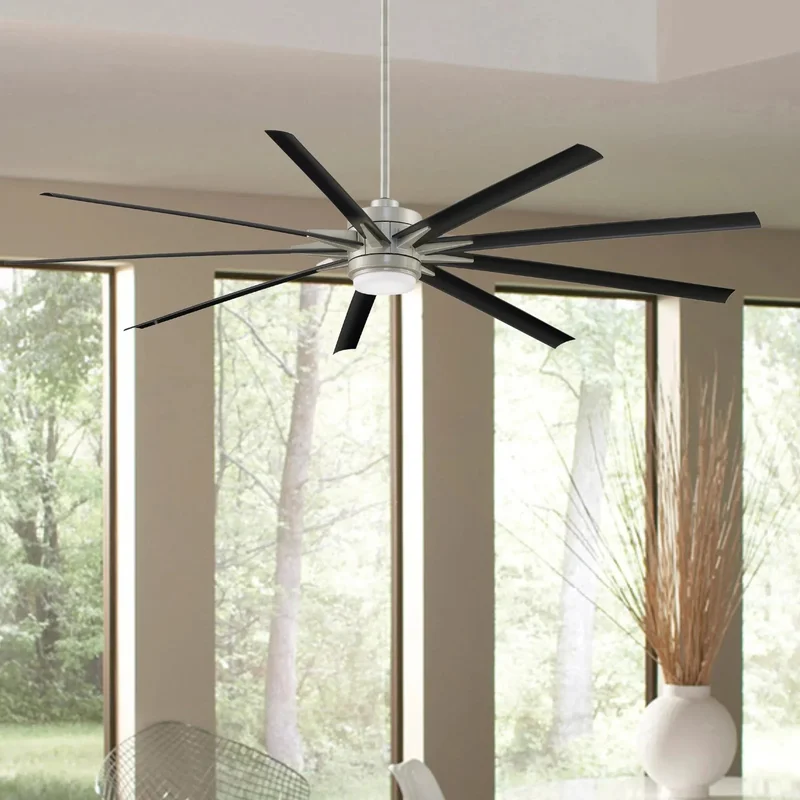

Fanimation Odyn 84” Ceiling Fan — Brushed Nickel with Black Blade
The Fanimation FPD8159BNWBL is an 84-inch ceiling fan featuring a set of nine 38-inch all-weather composite blades. It is powered by a DC165NL sensorless DC motor, offering optimal performance and energy efficiency. This fan is rated for wet locations, making it suitable for both indoor and outdoor use. The Brushed Nickel with Black Blade finish adds a modern touch to any space.
Key Features
- Blade Span: 84 inches
- Number of Blades: 9
- Motor Type: DC165NL sensorless DC motor
- Location Rating: Wet
- Light Kit: 18W LED with selectable CCT (3000K, 4000K, 5000K)
- Control: TR205D handheld remote control
- Airflow: 10,236 CFM at high speed
- Blade Pitch: 12 degrees
- Sloped Ceiling Compatible: Up to 27 degrees
- Downrod: Includes 6” downrod, optional lengths available
Construction & Design
The fan features a durable construction with a composite blade material and a sleek Brushed Nickel finish. The 12-degree blade pitch ensures efficient airflow.
Advanced Control Features
The fan includes a TR205D handheld remote control with 16 fan speeds, reverse function, and light dimming capabilities. Optional wall control and Wi-Fi receiver are available.
Electrical & Installation
Requires a 120V AC, 60 Hz, 15 amp circuit. Compatible with sloped ceilings up to 27 degrees, with optional kits for greater angles.
Light Output & Performance
The integrated 18W LED light provides 1600 lumens with selectable color temperatures (3000K, 4000K, 5000K) and a CRI of 90.
What’s Included
- 84” Ceiling Fan
- TR205D Handheld Remote Control
- 6” Downrod
- 18W LED Light Kit
