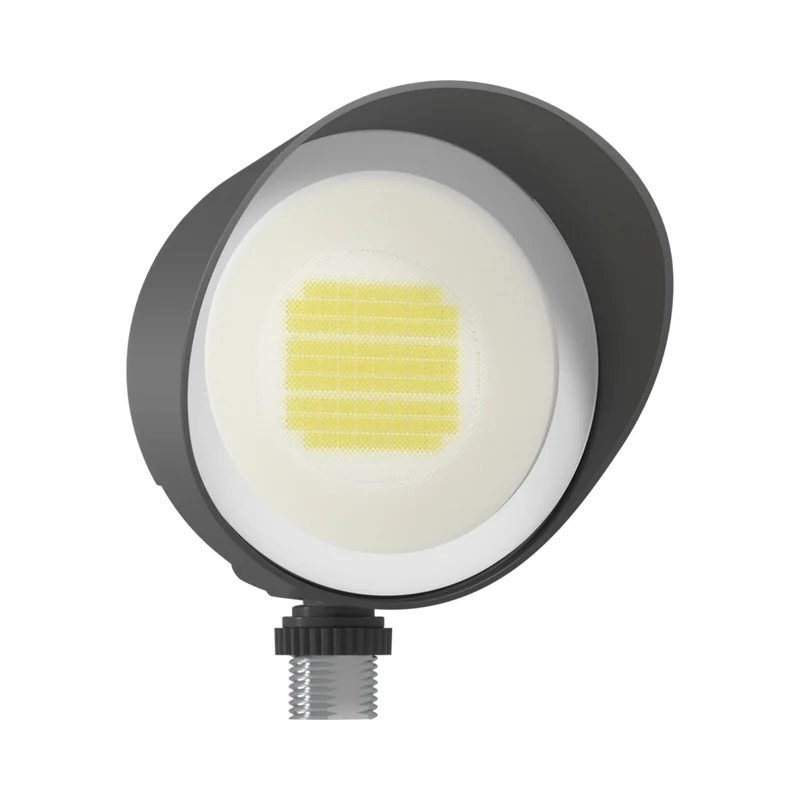

RAB BULLET20A Field Adjustable Flood Light 2095 Lumens 20W Selectable CCT 120-277V Bronze

Description

RAB Bullet Field Adjustable Flood Light — 20W Configuration

The RAB BULLET20A is a versatile flood light offering 20W power with a maximum output of 2095 lumens. It features selectable color temperatures of 3000K, 4000K, and 5000K and operates on 120-277V. This flood light is IP65 rated, making it suitable for wet locations and ensuring durability in various environments.

Key Features

• Field Adjustability: Offers adjustable wattage settings of 20W, 15W, and 10W with a factory default of 20W.
• Selectable CCT: Choose from 3000K, 4000K, or 5000K color temperatures to suit different lighting needs.
• Driver: Constant current driver with TRIAC dimming capability down to 10%.
• Surge Protection: Equipped with 1 kV surge protection for enhanced reliability.
• Construction: Die-cast aluminum housing with a glass lens for robust performance.
• Optics: NEMA 6H x 6V beam spread for uniform light distribution.
• Lifespan: Long-lasting LEDs with a 100,000-hour lifespan based on IES LM-80 results.
• Compliance: UL listed for wet locations and Trade Agreements Act compliant.
• Mounting: Includes a heavy-duty mounting arm with an ‘O’ ring seal and stainless steel screws.
• Environmental: Operates in temperatures from -40°F to 104°F, ensuring performance in extreme conditions.

Typical Applications

• Building facades
• Parking lots
• Signage lighting
• Security lighting
• Landscape illumination

Performance & Light Output

This flood light delivers a luminous efficacy of 98.3-114.3 lm/W with a CRI of 82-85, ensuring high-quality light output. The long-life LEDs are designed for a 100,000-hour lifespan, providing reliable performance over time.

Electrical & Controls

Operating on 120-277V, the BULLET20A features a constant current driver and is compatible with TRIAC dimmers for adjustable light levels. It includes surge protection of 1 kV for added safety.

Construction & Durability

Constructed with a die-cast aluminum housing and glass lens, this fixture is IP65 rated for protection against dust and water ingress. It is suitable for use in temperatures ranging from -40°F to 104°F.

Installation & Mounting

The flood light comes with a heavy-duty mounting arm, ‘O’ ring seal, and stainless steel screws for secure installation. It is designed for easy mounting on various surfaces.

What’s Included

• Flood light fixture
• Mounting arm
• Installation hardware
