Description

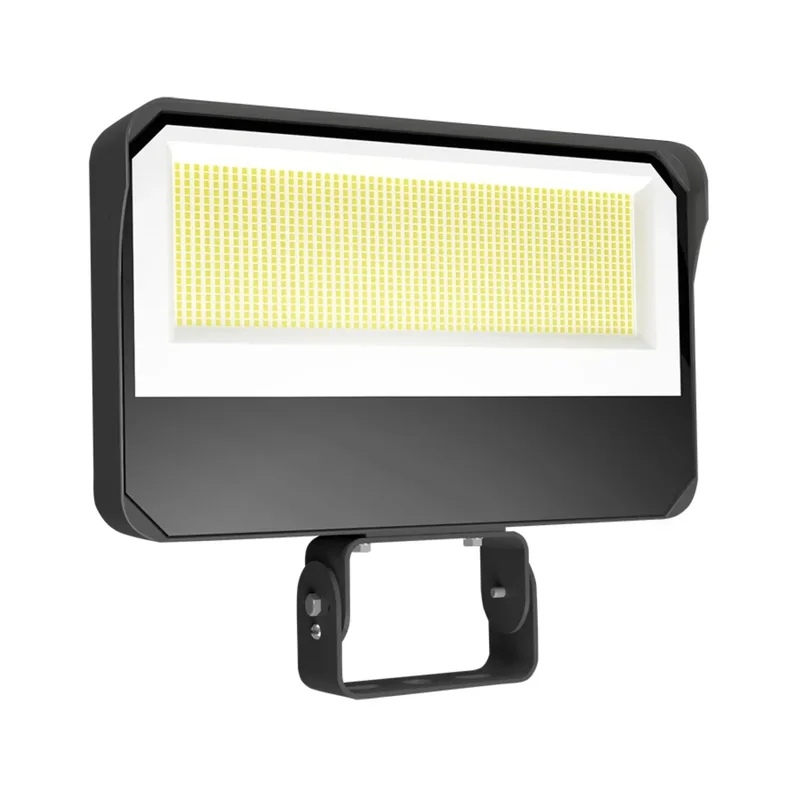

LF17 Field Adjustable Landscape Lighting Flood Light — 8W Configuration
The LF17W flood light offers a versatile lighting solution with 8W power, delivering up to 1115 lumens. It supports 120-277V input and features selectable color temperatures ranging from 2700K to 5000K, making it suitable for various outdoor applications. This fixture is IP65 rated, ensuring durability in wet locations.
Key Features
- Field Adjustability: Easily adjust wattage from 1W to 8W to suit specific lighting needs.
- Selectable CCT: Choose from 2700K, 3000K, 3500K, 4000K, and 5000K for optimal color rendering.
- High Efficacy: Achieves an efficacy range of 119.3 to 149.5 lm/W for energy-efficient performance.
- Long Lifespan: Designed for a 50,000-hour lifespan, reducing maintenance frequency.
- Durable Construction: Die-cast aluminum housing with a PMMA lens for robust protection.
- Dimming Capability: Supports 0-10V dimming, allowing for precise light level control.
- Surge Protection: Equipped with 2.5 kV surge protection for enhanced reliability.
- Compliance: UL listed for wet locations and compliant with Trade Agreements Act.
Typical Applications
- Landscape Lighting
- Building Facades
- Pathway Illumination
- Accent Lighting
- Security Lighting
Performance & Light Output
The LF17W flood light delivers up to 1115 lumens with a color rendering index (CRI) of 82-86, ensuring vibrant and accurate color representation. It maintains consistent color uniformity with a 7-step MacAdam Ellipse binning.
Electrical & Controls
Operating at 120-277V, the fixture includes a constant current driver and supports 0-10V dimming. It features a power factor of 99.7% and a total harmonic distortion (THD) of 7.7% at 120V.
Construction & Durability
Constructed with die-cast aluminum and a PMMA lens, the LF17W is built to withstand harsh environments. It operates in temperatures ranging from -40°F to 104°F and is IP65 rated for dust and water resistance.
Installation & Mounting
The fixture includes a knuckle arm mount for flexible installation options, suitable for various outdoor settings.
What’s Included
- LF17W Flood Light
- Knuckle Arm Mount
