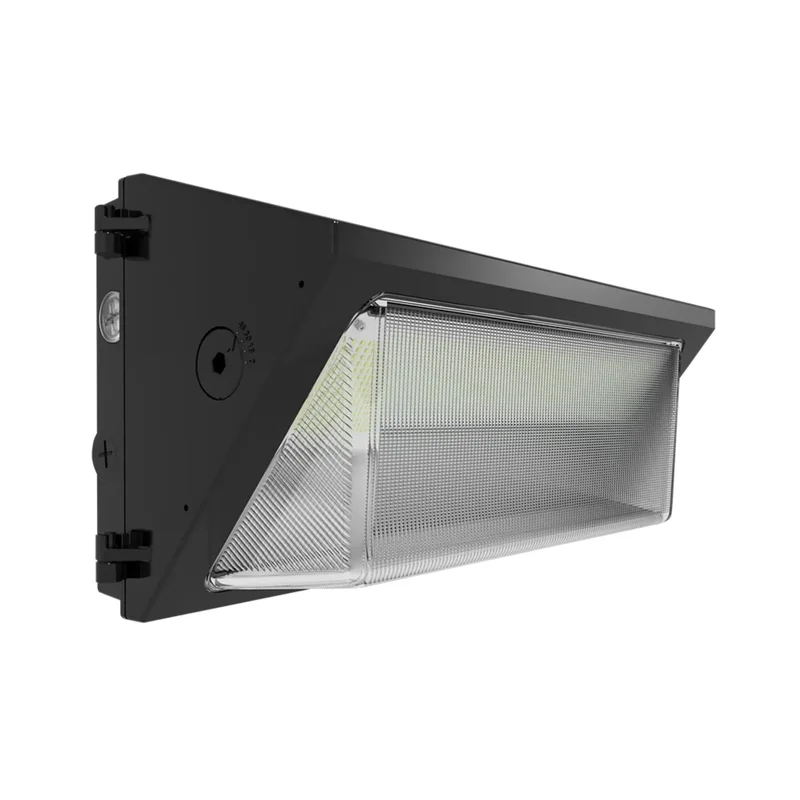

RAB W22 Large Field-Adjustable LED Wall Pack — 75-150W Selectable, 120–277V, Bronze
The RAB W22-L-150 is a highly powerful and versatile large LED wall pack delivering up to 20,920 lumens with field-selectable 75W/100W/125W/150W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this luminaire features an innovative adjustable throw (0° to 45° cutoff adjustability) and an integrated selectable on/off photocell to provide tailored, automated dusk-to-dawn security lighting. Built with a Wet Location rating and a premium die-cast aluminum housing, it delivers an ultra-durable lighting solution explicitly designed for commercial and industrial exteriors.
Key Features
- Wattage: 75W / 100W / 125W / 150W Selectable (150W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 10,103 to 20,920 lumens (up to 161.6 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Optical Adjustability: 0°, 15°, 30°, and 45° settings (45° default)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 83-85
- HID Equivalent: Replaces up to 750W Metal Halide or 400W HPS
- Environmental Ratings: UL Listed for Wet Locations
- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and man doors
- Commercial and industrial exteriors
- Adjustable forward-throw illumination
Performance & Light Output
This heavy-duty, contractor-friendly wall pack provides highly efficient downlight and forward-throw illumination ranging from 10,103 to 20,920 lumens depending on the selected wattage and color temperature, achieving an outstanding efficacy of up to 161.6 lumens per watt. Installers can easily match existing site lighting by toggling between warm white, cool white, and daylight. A standout feature is its field-adjustable optic, allowing users to physically adjust the cutoff angle to 0° (full downlight), 15°, 30°, or 45° to perfectly meet site distribution needs. The high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate). The electrical components are securely protected by built-in surge protection (DM 4kV, CM 6kV). To maximize energy savings, the W22-L-150 includes a discreet, integrated photocell with a selectable on/off switch, enabling hands-free dusk-to-dawn operation without the need for external timers or networked controls.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing paired with a highly durable glass lens, finished in a long-lasting bronze color. It carries a UL Listed rating for complete protection against dust and water ingress in wet locations. The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting
The W22 series is engineered for quick and straightforward surface-mount installation. It easily mounts over a recessed junction box and includes three convenient conduit entry points to accommodate various surface wiring configurations.
What’s Included
- RAB W22 Large LED Wall Pack (Bronze)
- Integrated Selectable Photocell
