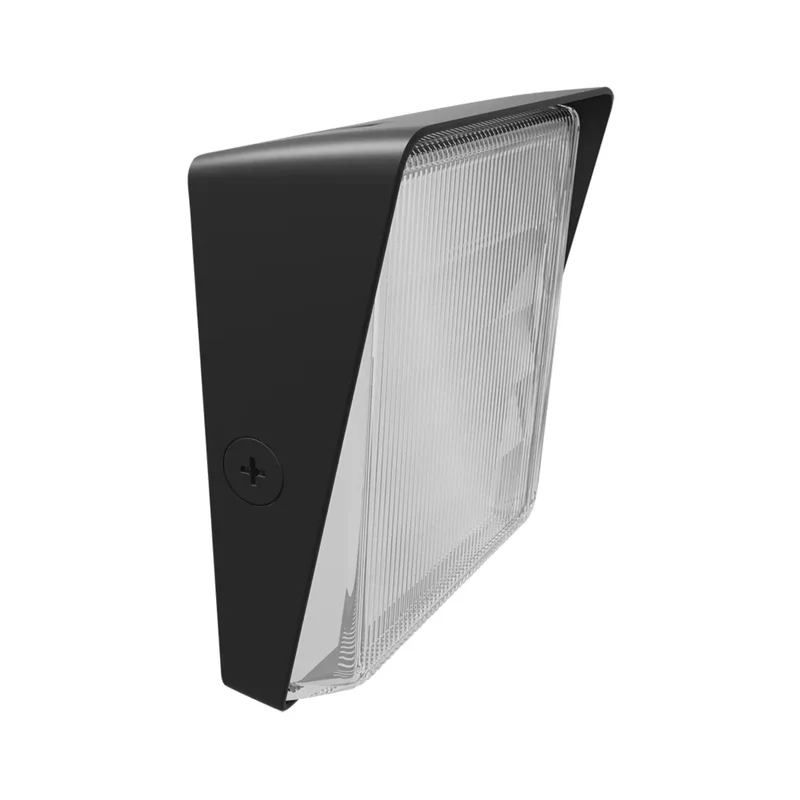

RAB W34 Small Field-Adjustable LED Wall Pack — 17-35W Selectable, 120–277V, Bronze
The RAB W34S is a highly versatile and economical small LED wall pack delivering up to 5,574 lumens with field-selectable 17W/25W/35W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this bronze-finished luminaire features an integrated selectable on/off photocell to provide tailored, automated dusk-to-dawn security lighting. Built with a Wet Location rating and a premium die-cast aluminum housing, it delivers an ultra-durable lighting solution explicitly designed for commercial and residential exteriors, pathways, and building perimeters.
Key Features
- Wattage: 17W / 25W / 35W Selectable (35W default)
- Selectable CCT: 3000K / 4000K / 5000K (5000K default)
- Delivered Lumens: 2,728 to 5,574 lumens (up to 153.0 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 73-75
- HID Equivalent: Replaces up to 175W Metal Halide or 150W HPS
- Environmental Ratings: UL Listed for Wet Locations
- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant, Trade Agreements Act (TAA) Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and man doors
- Commercial and residential exteriors
- General outdoor area illumination
Performance & Light Output
This contractor-friendly wall pack provides highly efficient general illumination ranging from 2,728 to 5,574 lumens depending on the selected wattage and color temperature, achieving an outstanding efficacy of up to 153 lumens per watt. Installers can easily match existing site lighting by toggling between warm white, cool white, and daylight. The specular aluminum reflector provides broad distribution while the high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance over its lifespan.
Electrical & Controls
This fixture operates on a constant current, Class 2 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate). To maximize energy savings, the W34S includes a discreet, integrated photocell with a selectable on/off switch, enabling hands-free dusk-to-dawn operation without the need for external timers or networked controls.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing paired with a highly durable glass lens, finished in a long-lasting bronze color. It carries a UL Listed rating for complete protection against dust and water ingress in wet locations. The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting
The W34 series is engineered for quick and straightforward installation. The die-cast backbox features a knockout pattern for standard junction box mounting as well as direct wall mounting. For added contractor convenience, it includes four conduit entry points and a hinged door to allow for easy wiring and re-assembly.
What’s Included
- RAB W34 Small LED Wall Pack (Bronze)
- Integrated Selectable Photocell
