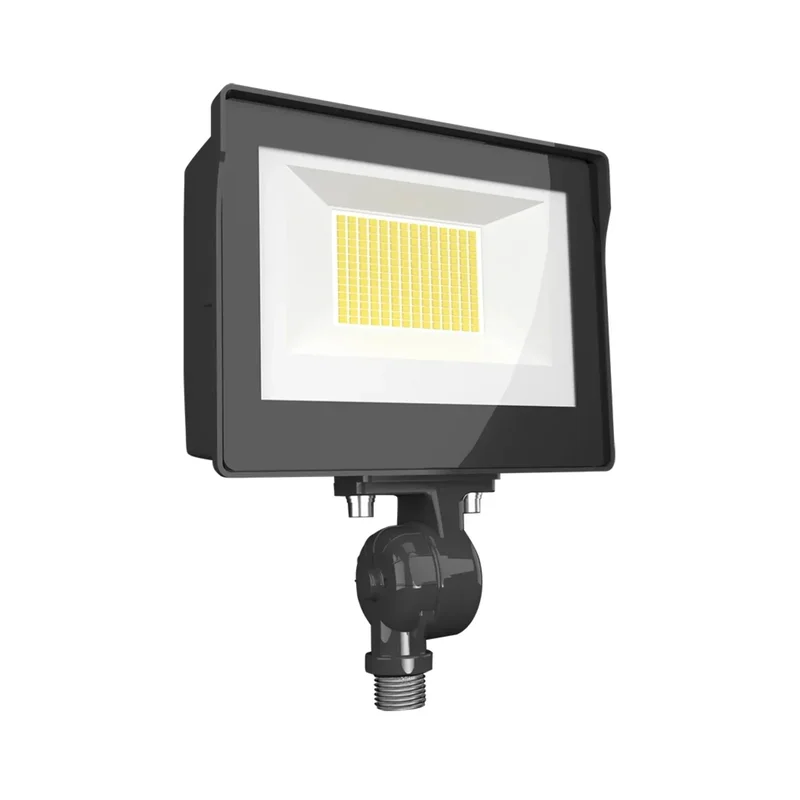

RAB X17XFU35 Field-Adjustable Floodlight — 35W, Selectable CCT & Power, Knuckle Mount, Photocell, 120-277V, Bronze
The RAB X17XFU35 is a highly efficient, 3-way field-adjustable LED flood light designed to deliver bright illumination with incredible on-site versatility. This compact, powerful luminaire produces up to 5,031 lumens and allows installers to easily toggle between three wattage levels (35W, 25W, 15W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, landscapes, and architectural accents. Operating on a 120-277V driver, this model comes fully equipped with a selectable photocell that can be easily turned on or off for automated dusk-to-dawn energy savings. Built for longevity, the X17XFU35 is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.
Key Features
- Wattage: 3-Way field adjustable to 35W, 25W, or 15W (factory default 35W).
- Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
- Photocell: Integrated 120-277V selectable photocell (can be turned on/off).
- NEMA Type: Wide NEMA 7H x 7V beam spread.
- Mounting Type: Robust knuckle mount with a 180° adjustable swivel arm and 10° tilt increments.
- Delivered Lumens: Up to 5,031 lumens at the highest 35W setting.
- Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
- Warranty: 5-Year limited warranty.
Typical Applications
- Building perimeters and facade illumination
- Landscape, patio, and yard lighting
- Commercial signage and architectural accents
- General exterior area and security lighting
Performance & Light Output
The X17XFU35 provides high-intensity, uniform light with a maximum output of 5,031 lumens and an excellent efficacy of up to 163.7 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours (based on LM-80 results and TM-21 calculations), this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a Class 1 constant current driver and robust surge protection, the X17XFU35 is built for exceptionally stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated selectable photocell to automate daylight operation.
Construction & Durability
The fixture features a rugged precision die-cast aluminum housing and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.
Installation & Mounting
This model includes an integrated robust knuckle mount, ideal for secure installations on standard junction boxes or landscape posts. The mount features a 180° swivel arm and rotates in 10° increments for very precise light aiming.
What’s Included
- RAB X17XFU35 LED Field-Adjustable Floodlight (Bronze)
- Integrated Knuckle Mount
- Integrated Selectable Photocell
- 5-Year Manufacturer Warranty
