Description

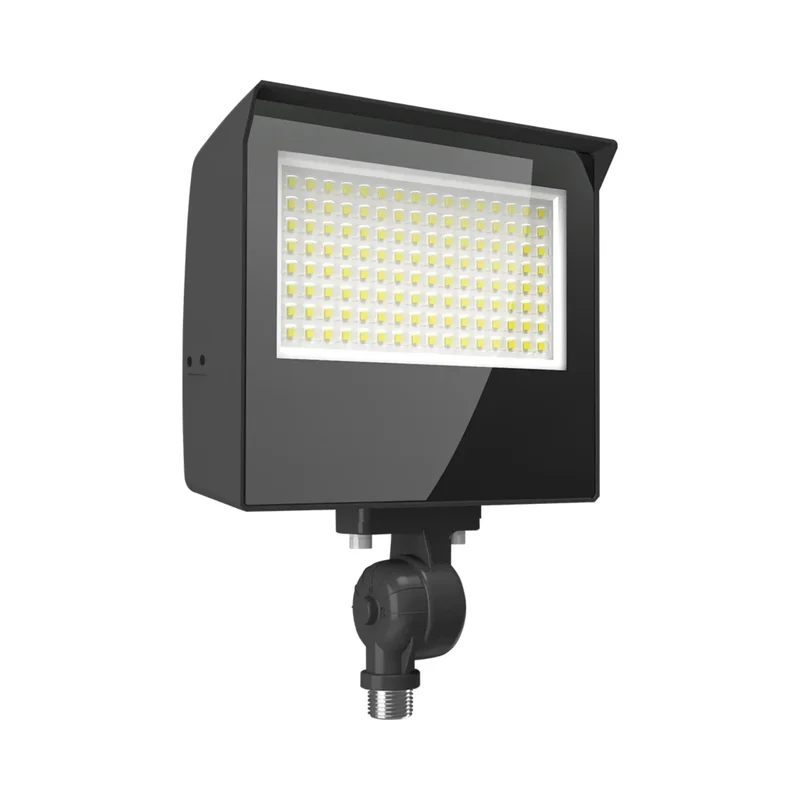

RAB X22-60 5-Way Selectable Floodlight — 60W, Selectable CCT & Beam Angle, Photocell, Knuckle/Trunnion Mount, 120-277V, Bronze
The RAB X22-60 is a premium, highly versatile 5-way selectable LED flood light engineered for true flexibility and high efficiency. This compact fixture produces up to 9,353 lumens and allows installers to seamlessly adjust the wattage (60W, 50W, 40W, 30W) and color temperature (3000K, 4000K, 5000K) directly on the job site. It provides even more control with field-adjustable optics, allowing you to select between three different beam angles (90°, 75°, 55°) to perfectly shape your light distribution. Operating on a 120-277V universal driver, it features 0-10V dimming and an integrated On/Off photocell for automated energy savings. With a rugged IP65-rated die-cast aluminum housing and two included mounting kits (knuckle and trunnion), the X22-60 is the ultimate ultra-efficient floodlight for commercial exteriors and landscapes.
Key Features
- Wattage: Field adjustable to 60W, 50W, 40W, or 30W (defaults to 60W).
- Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
- Selectable Beam Angle: Optical field adjustability between 90°, 75°, and 55°.
- Delivered Lumens: 4,405 lumens up to 9,353 lumens depending on selected settings.
- Efficacy: Ultra-efficient performance ranging from 124.7 up to 168.6 Lumens Per Watt (LPW).
- Voltage: 120-277V AC @ 50/60Hz.
- Dimming: 0-10V dimming standard, dimming down to 10%.
- Photocell: Integrated On/Off photocell included.
- Environmental Ratings: IP65 rated for dust and water, UL Listed for wet locations.
- Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product Code: S-PWNS5H).
- Warranty: 5-Year limited warranty.
Typical Applications
- Landscape and signage lighting
- Building perimeters and facades
- Pathways and commercial exteriors
- General purpose exterior security lighting
Performance & Light Output
The X22-60 delivers consistent, high-quality lumen output across all color temperature settings. With a maximum output of 9,353 lumens at its 60W setting, it provides brilliant illumination while maintaining DLC Premium levels of energy efficiency. The optical field adjustability allows you to narrow or widen the beam spread to fit the exact application. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture dramatically reduces long-term maintenance costs.
Electrical & Controls
This fixture operates on a 120-277V AC input and features built-in surge protection (L/N-PE: 6 kV, L-N: 6 kV). It provides immediate energy savings with an integrated On/Off photocell for dusk-to-dawn operation, ensuring the light is only on when needed. It also supports 0-10V dimming for integration with compatible dimming systems.
Construction & Durability
Engineered to withstand harsh environments, the X22-60 features a heavy-duty die-cast aluminum housing and a tempered glass lens finished in a durable bronze. The fixture is completely sealed, earning it an IP65 rating against dust and water. It safely operates in extreme cold weather starting down to -22°F (-30°C) and ambient temperatures up to 122°F (50°C).
Installation & Mounting
Designed to reduce SKU inventory and simplify installation, this 60W model comes standard with two complete mounting kits in the box: a knuckle mount and a trunnion mount. The robust knuckle mount features a 180° adjustable swivel arm with tilt angles in 10° increments for precise aiming. Alternatively, the trunnion kit can be used for secure flat-surface or architectural installations.
What’s Included
- RAB X22-60 LED Field-Adjustable Floodlight (Bronze)
- Knuckle Mount Kit
- Trunnion Mount Kit
- Integrated Photocell
