Description

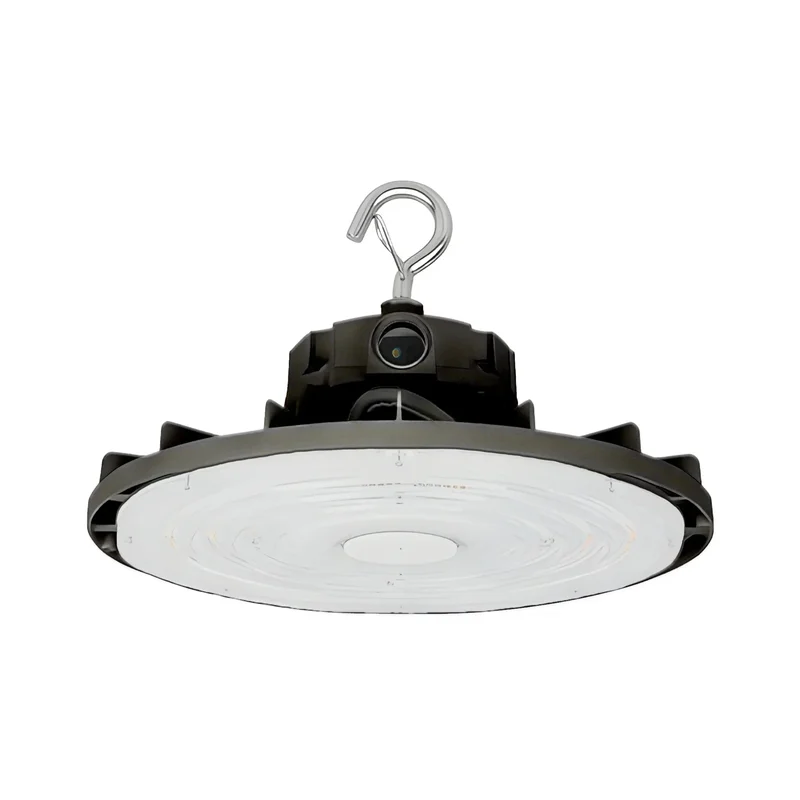

Satco|Nuvo Washdown LED Round High Bay — 200W/150W/100W Selectable
The Satco 65-1160 is an LED washdown round high bay offering 200W/150W/100W selectable wattage and up to 30,000 lumens. Operating on a universal 120-277V input, it provides contractors with flexible, high-efficiency illumination. The rugged UFO design ensures premium lighting for demanding industrial sites and hygienic environments without compromising on performance.
Key Features
- Wattage Selectable: 200W/150W/100W field-adjustable power options.
- CCT Selectable: 4000K and 5000K switchable color temperatures.
- Input Voltage: 120-277V universal operation.
- Light Output: Up to 30,000 lumens with a maximum 150 LPW efficacy.
- Environmental Rating: IP69K washdown rated for thermal cleaning.
- Certifications: NSF approved for food processing environments.
- Lens: IK10 impact-resistant polycarbonate lens.
- Dimming: Standard 0-10V continuous dimming.
Typical Applications
- Food Processing Plants
- Agricultural and Farm Buildings
- Commercial Kitchens
- Manufacturing Facilities
- Storage Unit Facilities
Performance & Light Output
This luminaire delivers brilliant illumination ranging from 15,000 to 30,000 lumens with a premium efficacy of up to 150 LPW. It features an 80 CRI LED array for clear visual acuity and a 50,000-hour functional life rating. The integrated polycarbonate lens provides a uniform 85-degree beam angle, effectively distributing light across wide industrial workspaces.
Electrical & Controls
Powered by a robust 120-277V driver, this fixture ensures broad compatibility across commercial power systems. It comes standard with 0-10V continuous dimming functionality to maximize energy savings. Additionally, it features a 6kV surge protector and an integrated 3.5mm AUX port, making it ready for immediate sensor integration.
Construction & Durability
Built to endure the harshest conditions, the fixture is constructed from rugged die-cast aluminum with a clean white finish. It carries a stringent IP69K rating, offering complete protection against dust ingress and high-pressure, high-temperature washdown procedures. The unit is equipped with a pressure equalization vent and is rated for reliable operation in extreme ambient temperatures ranging from -40°C to 50°C.
Installation & Mounting
Engineered for quick deployment in high-ceiling environments, this round high bay supports suspended ceiling mounting using the included eyebolt fastener. It features a 6 ft Class 1 whip equipped with a waterproof connector, ensuring electrical integrity is maintained during wet-location installations.
What’s Included
- (1) LED Washdown Round High Bay
- (1) Eyebolt Fastener
- (1) 6 ft Power Whip with Waterproof Connector
