Description

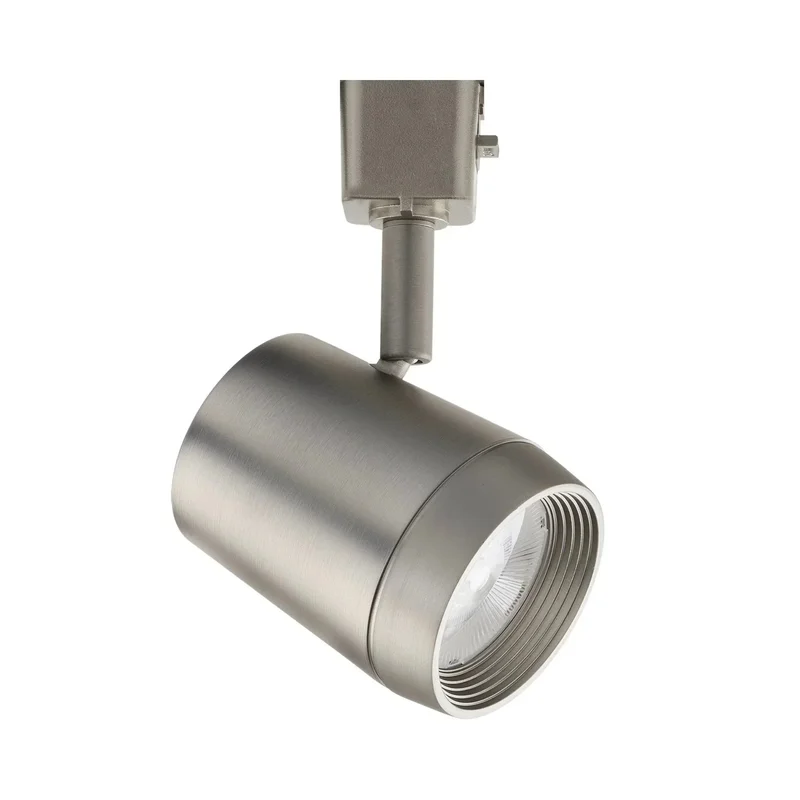

WAC Lighting OCULARC Track Head — Brushed Nickel & Selectable CCT
The WAC Lighting J-7030-CS-BN track head in brushed nickel is a versatile lighting solution for J-Type track systems. With a 29W power consumption and 120V operation, this fixture offers a high output of 2255 lumens and a selectable CCT range from 2700K to 5000K.
Key Features
- Voltage: Operates at 120V, compatible with standard track lighting systems.
- Wattage: Consumes 29W, providing efficient energy use.
- Lumens: Produces a maximum of 2255 lumens for bright illumination.
- CCT Range: Selectable color temperatures from 2700K to 5000K.
- Aiming Angles: 350° horizontal and 90° vertical for flexible lighting direction.
- Beam Angles: Includes 55° pre-installed, with 40° and 20° options.
- CRI: High color rendering index of 90+ for accurate color representation.
- Certifications: ETL & cETL Dry Location Listed, Title 24 JA8 Compliant.
- Track System: Specifically designed for J-Type track systems.
Core Design & Adjustability
Constructed from die-cast aluminum with a baffled front cover for glare control, this track head is finished in electroplated brushed nickel. It offers 350° horizontal and 90° vertical aiming for optimal adjustability.
LED Illumination & Performance
Featuring a high output COB LED with a 90+ CRI, this track head delivers up to 2255 lumens with selectable CCT options. It is designed to outperform traditional 100W halogen PAR38 lamps.
Power, Wiring & Compatibility
This track head is compatible with J-Type track systems and operates at 120V. It supports ELV and TRIAC dimming from 100% to 10%.
Where This Fixture Works Best
- Retail environments
- Residential spaces
- Art galleries
- Commercial offices
- Showrooms
What’s Included
- Track head with pre-installed 55° beam film
- Interchangeable 40° beam film
- Option to remove film for 20° spot beam
