Description

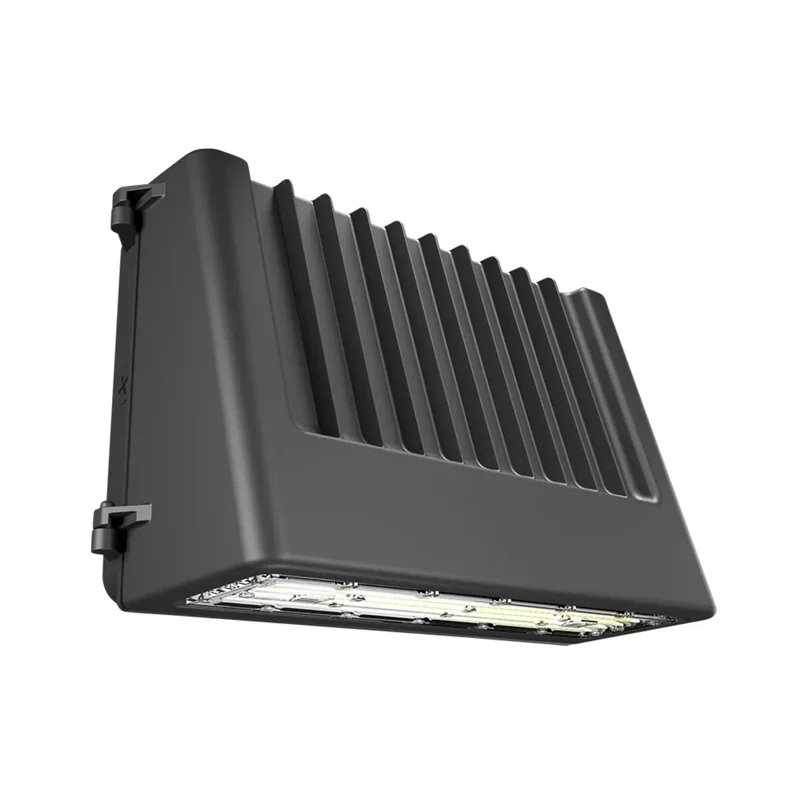

RAB SLIM Extra-Small Field-Adjustable LED Wall Pack — 12-25W Selectable, 120–277V, White
The RAB SLIMXSW is an ultra-compact, highly versatile extra-small LED wall pack delivering up to 3,444 lumens with field-selectable 12W/18W/25W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this white-finished luminaire features an innovative adjustable throw (-20° to +20°) and an integrated selectable on/off photocell to provide tailored, automated dusk-to-dawn security lighting. Built with an IP65 Wet Location rating, ADA Compliance, and Dark Sky Approval, it delivers an adaptable, highly architectural lighting solution explicitly designed for commercial and residential exteriors.
Key Features
- Wattage: 12W / 18W / 25W Selectable (18W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 1,382 to 3,444 lumens (up to 142.9 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Optical Adjustability: -20° to +20° adjustable throw
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 80-83
- Environmental Ratings: IP65 Wet Location rated
- Certifications: UL Listed, DLC Premium Listed, ADA Compliant, Dark Sky Approved, Trade Agreements Act (TAA) Compliant, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and man doors
- Commercial and residential exteriors
- Adjustable forward-throw illumination
- ADA-compliant low-profile installations
- Dark-sky friendly zones
Performance & Light Output
This compact wall pack provides highly efficient downlight and forward-throw illumination ranging from 1,382 to 3,444 lumens depending on the selected wattage and color temperature, achieving an outstanding efficacy of up to 142.9 lumens per watt. Installers can easily match existing site lighting by toggling between warm white, cool white, and daylight. A standout feature is its field-adjustable optic, allowing users to physically adjust the light throw from -20° backwards up to +20° outward. The high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance.
Electrical & Controls
This fixture operates on a constant current 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate). To maximize energy savings, the SLIMXSW includes a discreet, integrated photocell with a selectable on/off switch, enabling hands-free dusk-to-dawn operation without the need for external timers or networked controls.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing paired with a highly durable tempered glass lens, finished in a clean, long-lasting white color. Its low-profile design formally meets ADA requirements for wall-mounted luminaires. It carries an IP65 rating for complete protection against dust and water ingress in wet locations. The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting
The SLIMXS series is engineered for quick and straightforward installation. The housing features a heavy-duty mounting bracket with a spring-hinged housing and a built-in “kick stand” to allow for hands-free wiring. It also features convenient conduit entries on the back and both sides to easily accommodate various surface wiring or recessed junction box configurations.
What’s Included
- RAB SLIMXSW Extra-Small LED Wall Pack (White)
- Integrated Selectable Photocell
