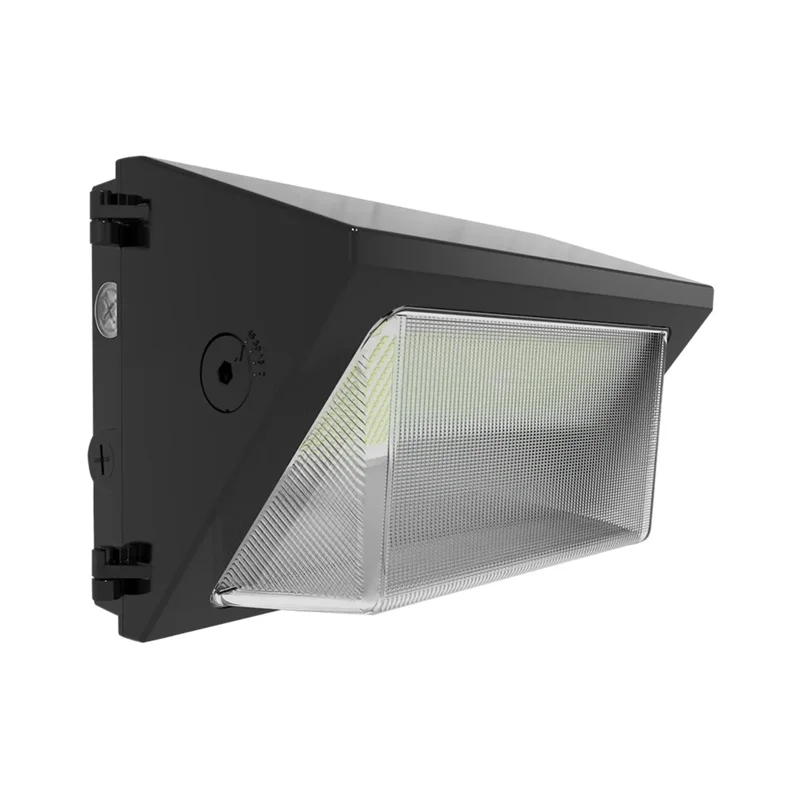

RAB WP2 Field-Adjustable LED Wall Pack — 80W, 120–277V, Bronze
The RAB WP2FA80 is the highest-output model in the traditional-style field-adjustable LED wall pack series, delivering up to 11,811 lumens at 80W. Specifically engineered to replace energy-intensive 400W Metal Halide fixtures, this model features adjustable 3000K/4000K/5000K color temperatures to ensure the perfect light tone for large-scale sites. Operating on a universal 120–277V driver, it includes an integrated selectable on/off photocell for automated security lighting. With its rugged die-cast aluminum construction and IP65 Wet Location rating, the WP2FA80 is the professional choice for tall building facades, loading docks, and high-security warehouse perimeters.
Key Features
- Wattage: 80W
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 11,288 to 11,811 lumens (up to 148.8 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 80+
- HID Equivalent: Replaces up to 400W Metal Halide
- Environmental Ratings: IP65 Wet Location rated
- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- High-profile building perimeters and facades
- Loading docks and warehouse exteriors
- Security and pathway lighting
- Parking areas and commercial properties
- Retrofit replacements for large HID glass wall packs
Performance & Light Output
The WP2FA80 provides intense, high-efficacy illumination ranging from 11,288 to 11,811 lumens depending on the chosen color temperature. Its precision aluminum reflector and prismatic tempered glass lens work together to deliver wide, uniform light distribution across large areas. Reaching an efficacy of up to 148.8 lumens per watt, this fixture maximizes light output while minimizing energy consumption. The integrated LEDs are rated for a 100,000-hour lifespan, effectively ending the need for frequent maintenance cycles even in high-use applications.
Electrical & Controls
This luminaire features a constant current, Class 2 120–277V AC driver and supports standard 0–10V dimming. The built-in button photocell provides reliable dusk-to-dawn automation, while the internal on/off switch allows contractors to easily disable the sensor when the fixture is controlled by a central building automation system, motion sensors, or external timers.
Construction & Durability
Built for the elements, the WP2 series features a precision die-cast aluminum housing with a high-durability bronze finish. High-temperature silicone gaskets maintain an IP65-rated seal against dust and water. The tempered glass lens is designed to resist both thermal shock and physical impact. This fixture is tested for operation in extreme environments, with an operating range of -40°C (-40°F) to 50°C (122°F).
Installation & Mounting
Measuring 14.38″ in width, the WP2FA80’s large footprint is perfect for renovations as it covers previous mounting marks and electrical box openings from older 400W HID units. The housing provides multiple conduit entries (top, side, and back) and a standardized knockout pattern for simple installation on 4″ junction boxes or direct surface mounting.
What’s Included
- RAB WP2FA80 LED Wall Pack (Bronze)
- Integrated Selectable Photocell
